Style:
Small Block Chevrolet 1986-2003
Dimensions:
7.000 deep
Description:

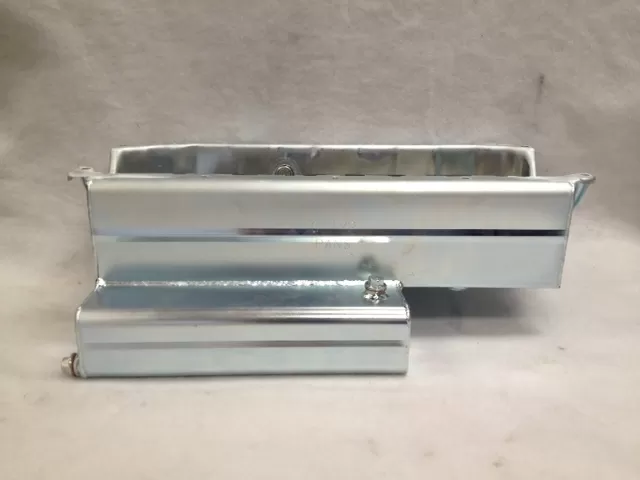

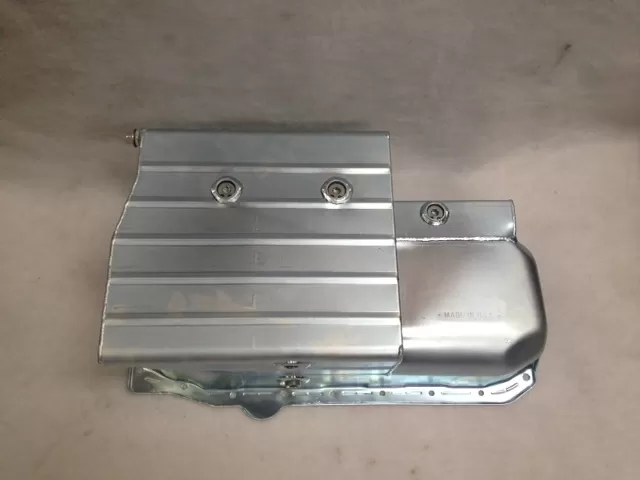

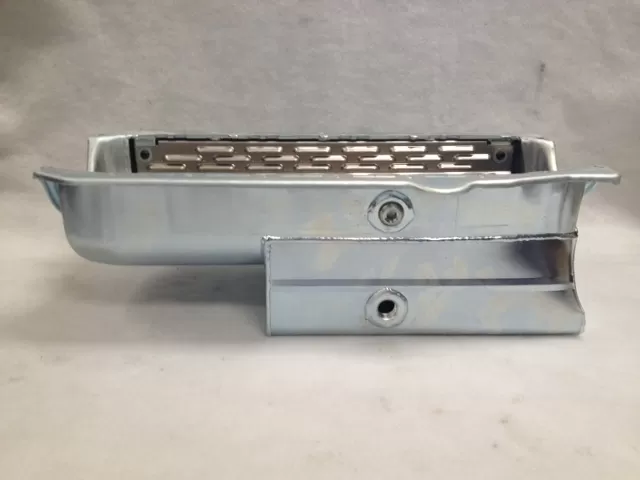

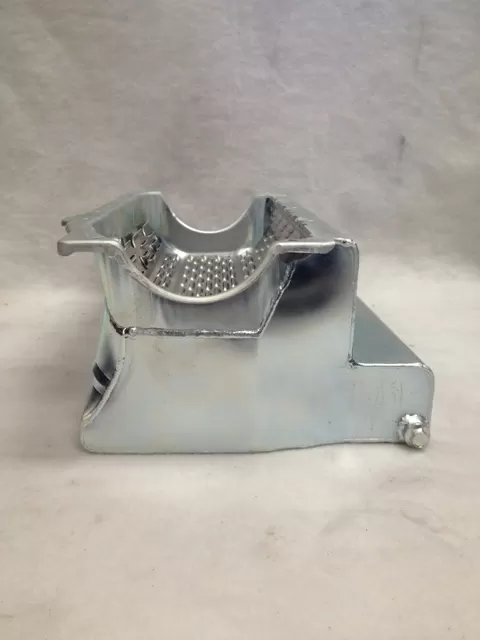

This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block
- three access plugs on the right side for mounting
- six trapdoors
- two runners
- a sump tray
- an oil temp sender port
- a 3/4" inspection hole

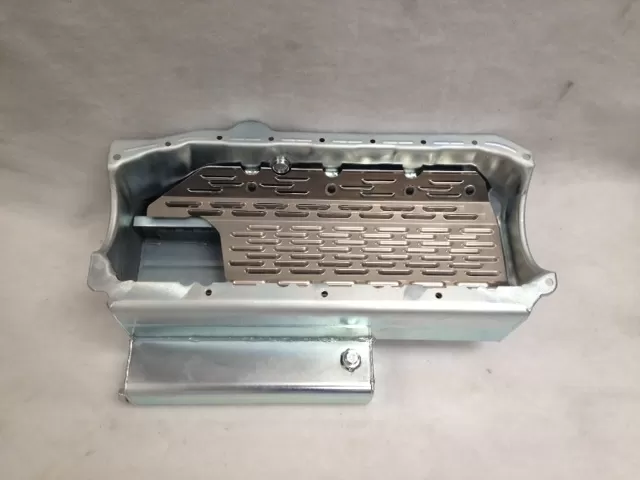

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish
This oil pan was designed for race cars that do not have a cross member in the way.
Oil capacity: 8 quarts with filter
Use: Dirt circle track (modified, super stock or midwest modified)
Dipstick: Use JR131
Starter: Mini-starter for a 168 flywheel
Gasket: Thick front seal
Dimensions: 13” L x 11 3/4" W x 7" H
No additional information could be found for this product.
No installation instructions could be found for this product.
