PRO1150 > Small Block Chevrolet 1957-1985

PRO1150 - $420.25

Style:
Small Block Chevrolet 1957-1985
Dimensions:
8" deep

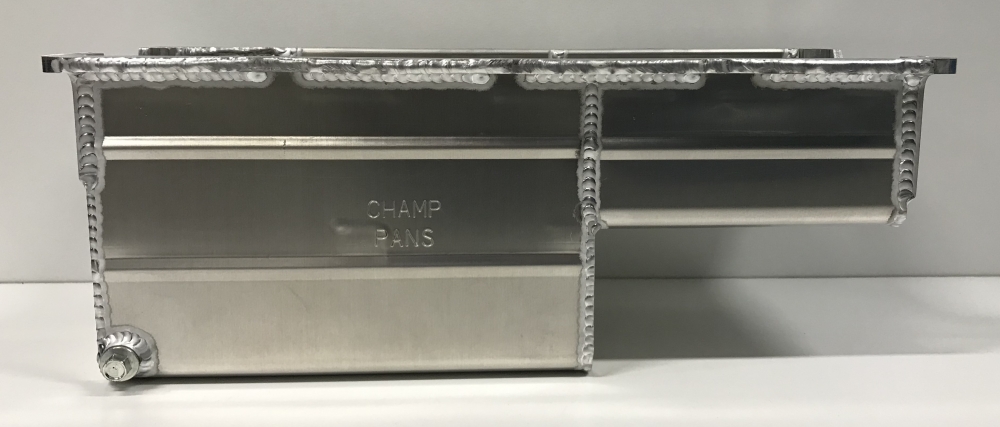

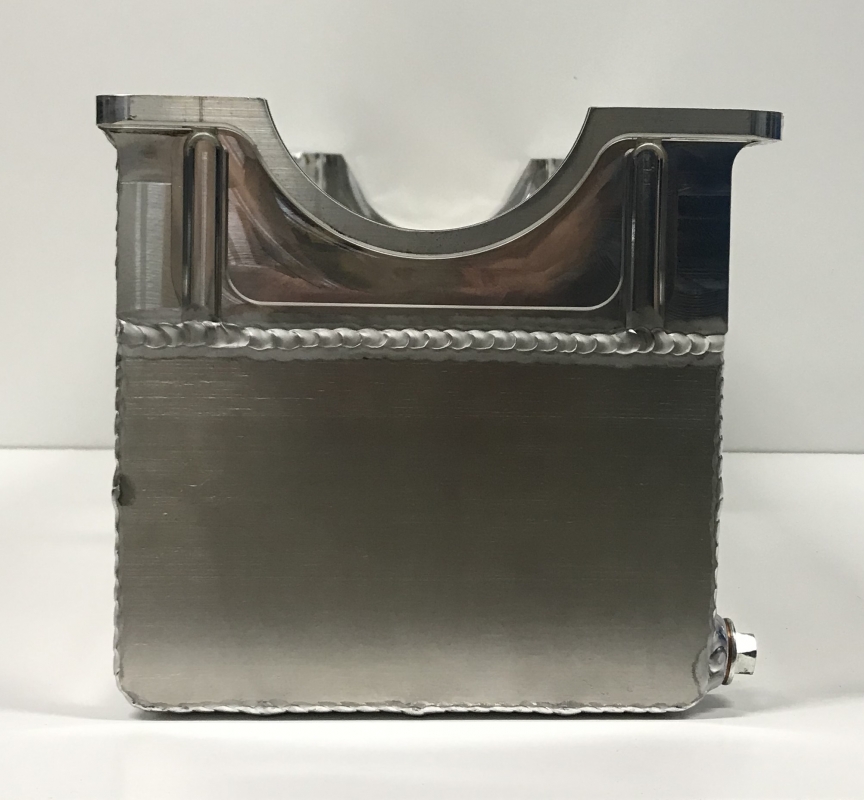

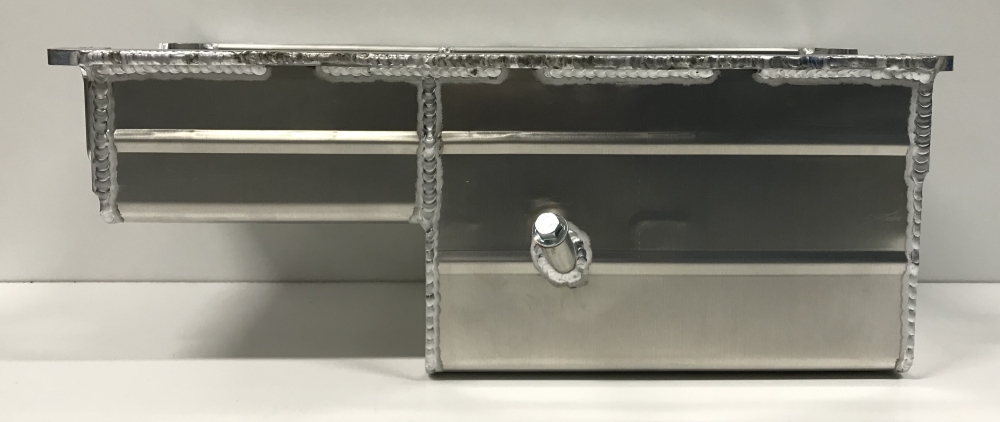

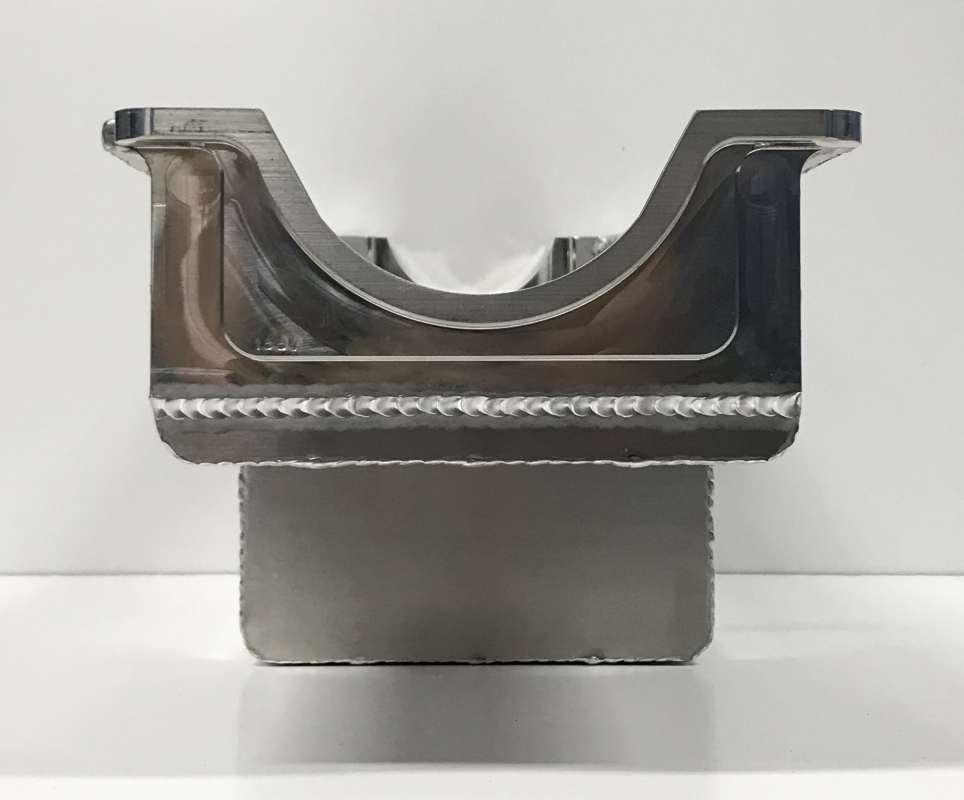

Description:This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- one 6” trapdoor

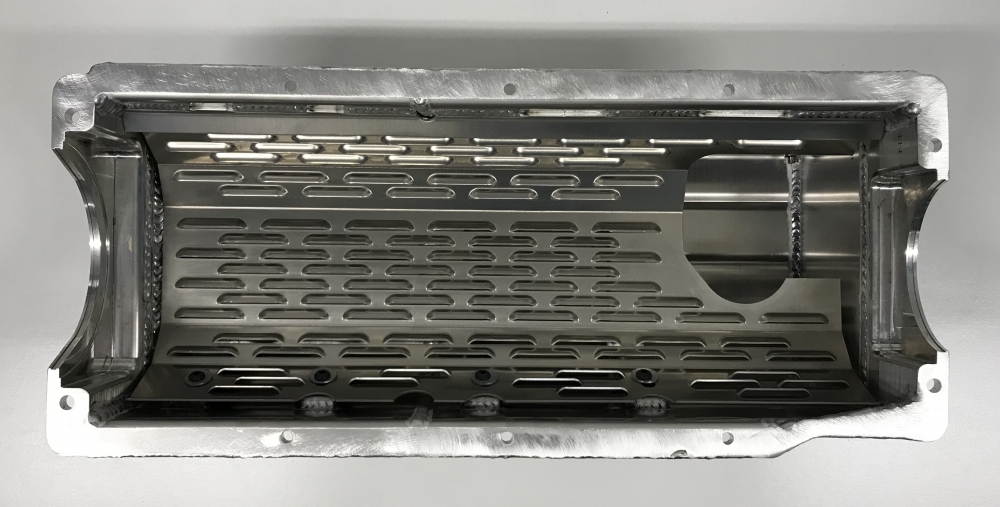

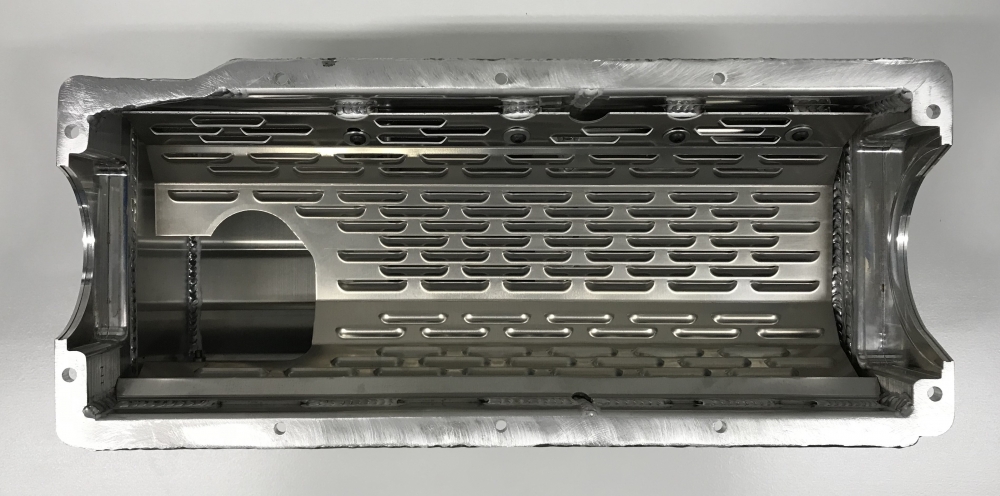

- a louvered windage tray
- a provision for a dipstick assembly

No pan gasket required.

Oil capacity: 7 quarts with filter

Use: Circle track, marine, road race, street or strip

Dipstick: Use JR131

Starter: Mini-starter

Dimensions: 12 1/4” L x 8" W x 8" H

Contact Us About This Product

Related Products

Name Application Info Price
60SB M-55HV/10550/10550C/10550ST 5/8” x 8” deep pickup $35.75
60BB M-77HV/-99HV/10770 3/4” x 8” deep pickup $39.00
61SB M155HV/10551/10551ST 3/4” x 8” deep pickup $39.00
63SB M-55/10553/10553ST 5/8” x 8” deep pickup $35.75
64SB M155/10551/10551ST 3/4” x 8” deep pickup $35.75
1007SB 10552/10552C/100552ST/10555/10555C/10555ST 3/4" x 8" deep pickup $48.75
JR131 Small Block Chevrolet/Ford/Mopar Dipstick assembly $16.00
