PRO1141KO > Small Block Chevrolet 1957-1985

PRO1141KO - $715.83

Style:
Small Block Chevrolet 1957-1985
Dimensions:
7" deep

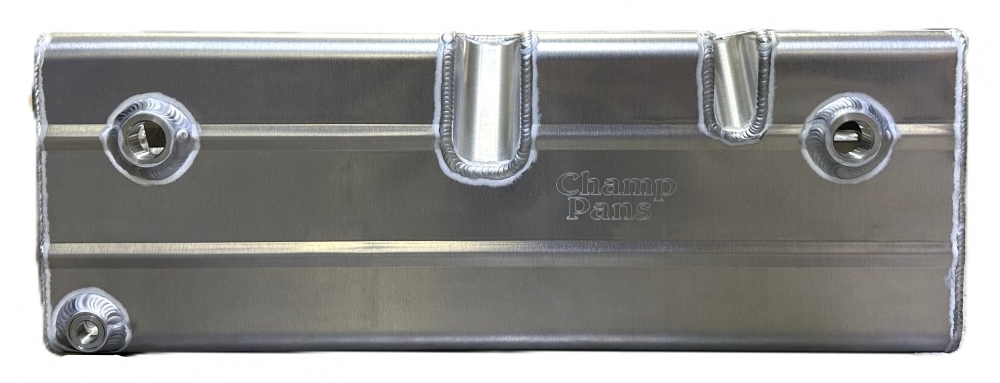

Description:*Photo shows two drain backs on right side of oil pan. The oil pan does NOT come with drain backs unless you order it that way*

This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- six trapdoors

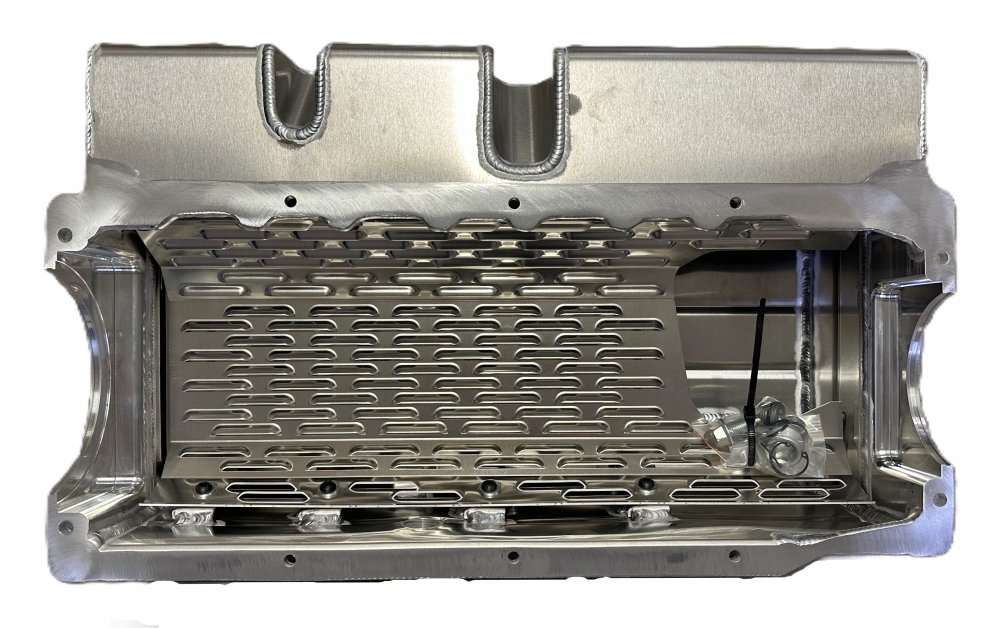

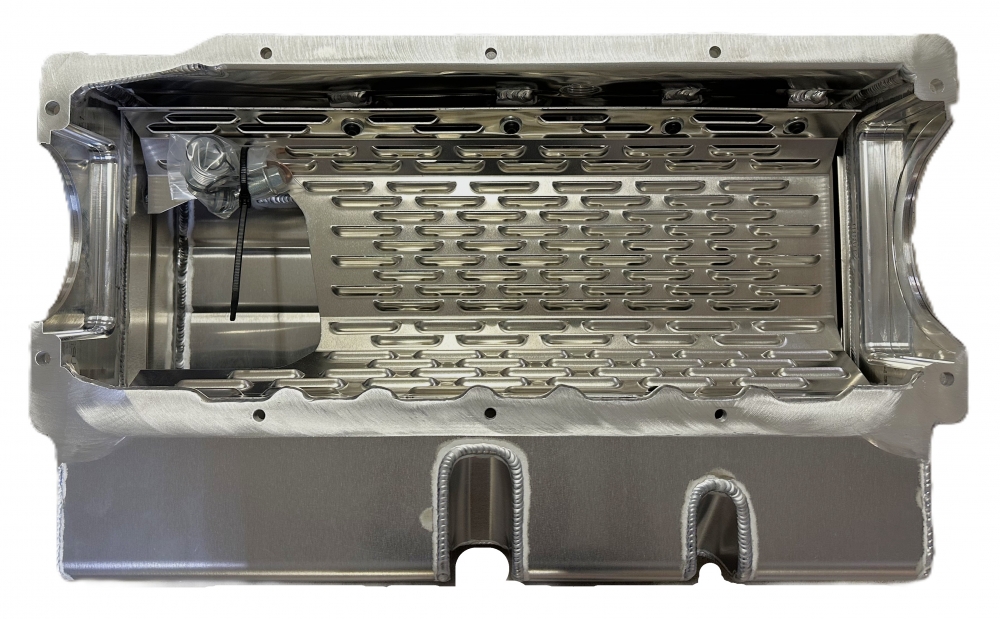

- a louvered windage tray
- an inspection hole
- an oil temp fitting
- an oil check level plug

This oil pan was designed to work with side flow oil pumps.

Oil capacity: 11 1/2 quarts with filter

Use: Circle track

Starter: Reverse mounted

Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.

Dimensions: 20” L x 12" W x 7" H
