LS1060 > Small Block Chevrolet LS1

LS1060 - $404.10

Style:
Small Block Chevrolet LS1
Dimensions:
5 1/2" deep

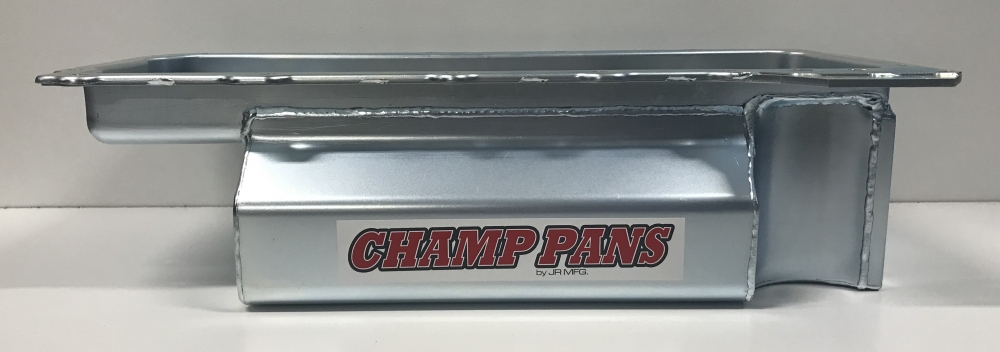

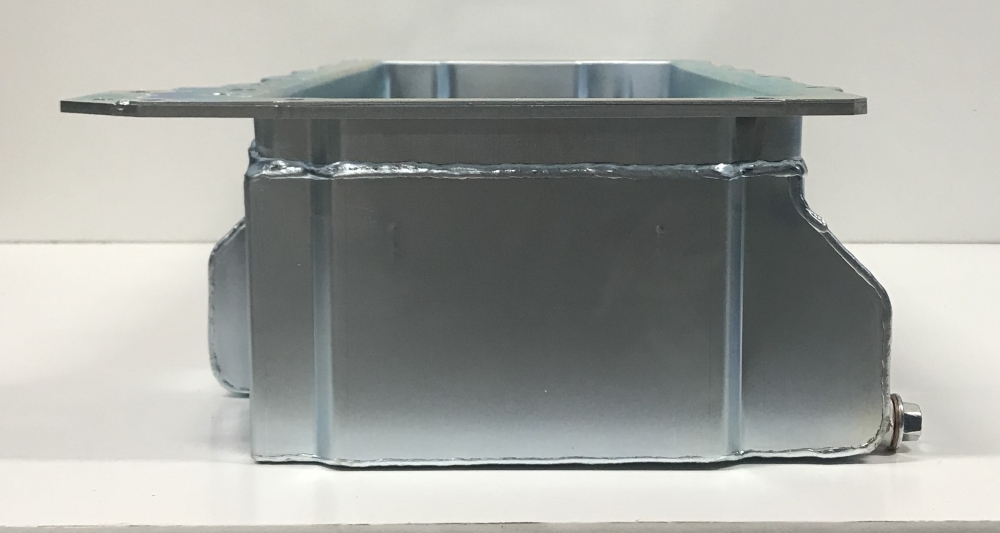

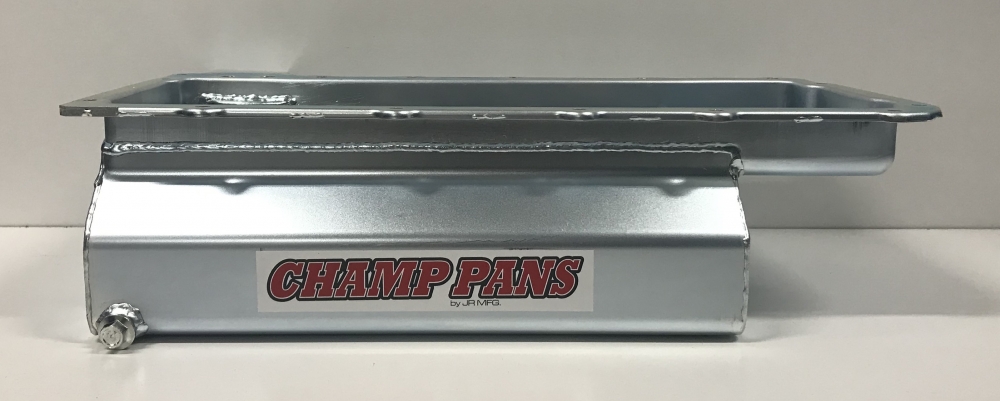

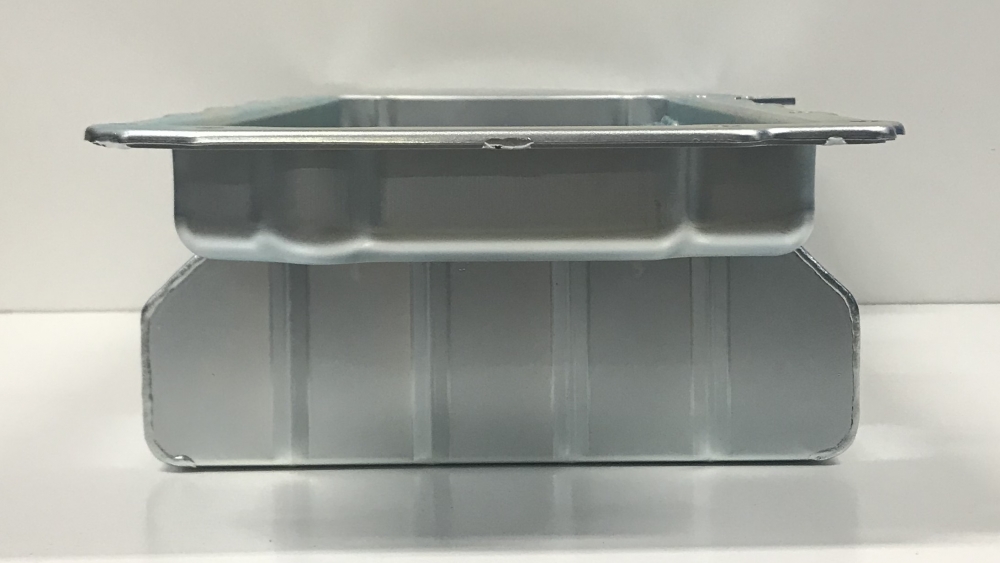

Description:This steel wet sump oil pan is for the Small Block Chevrolet LS1 engines. This oil pan features:
- four trapdoors

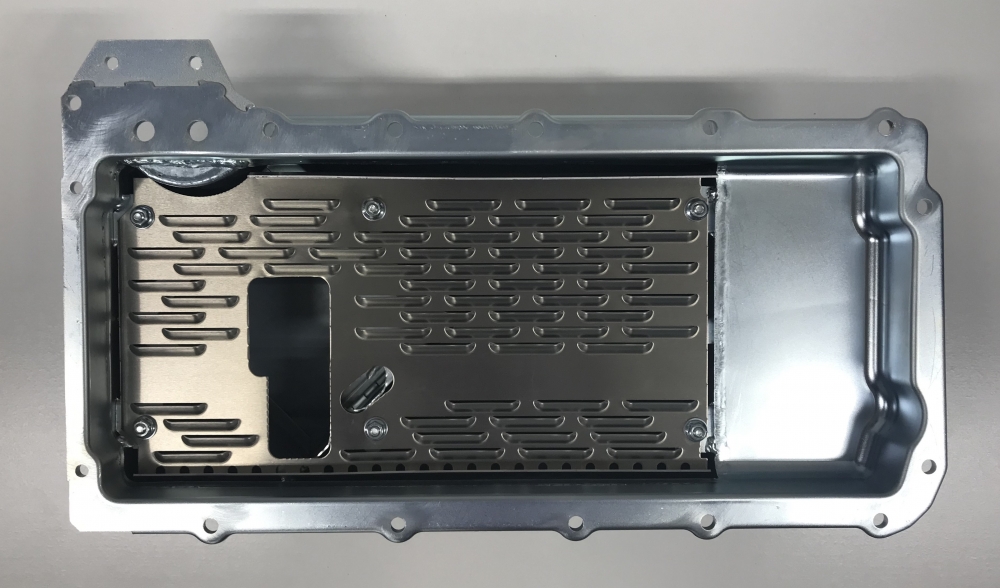

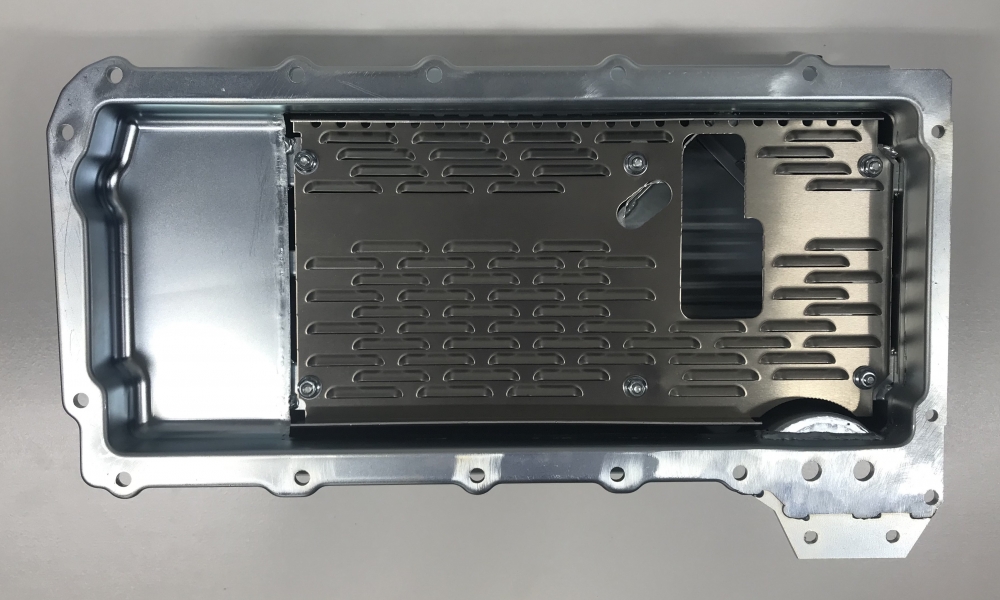

- a removable louvered windage tray
- pan rail girdle

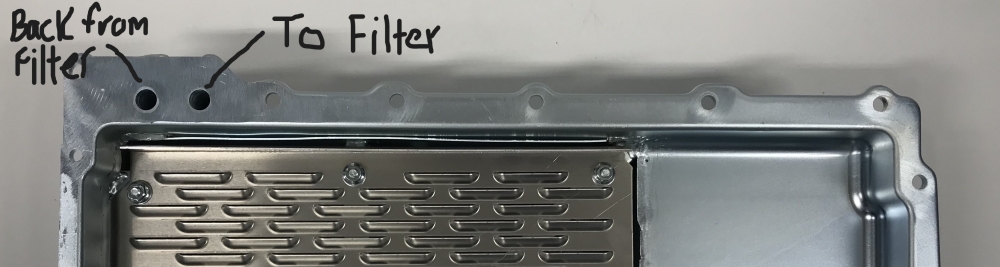

- a billet aluminum oil filter adapter in the stock location (sold separately)
- a clear zinc finish

This oil pan is ideal for LS1 engine swaps in vehicles where cross members are not an issue.

You can use the factory tray with this oil pan.

Oil capacity: 10 quarts with filter

Use: Marine, road race, street or strip

Dipstick: 98-02 F-body Camaro

Starter: Stock

Dimensions: 16” L x 11 1/4" W 5 1/2" H

Contact Us About This Product

Related Products

Name Application Info Price
750LS1 10295 and 10355 7/8" x 5 1/2" deep pickup $80.85
LS1001-2 Small Block Chevrolet LS1 Crossover plate $19.38
LS1001-3 Small Block Chevrolet LS1 Remote block $80.84
LS1001 Small Block Chevrolet LS1 Oil filter adapter $113.72
LS1001-1 Small Block Chevrolet LS1 Cross drilled and tapped oil filter adapter $124.30
LS-2 LS1060, LS3060 Louvered sump tray $42.90
