Style:
Big Block Chevrolet Gen V
Dimensions:
8.000 deep
Description:

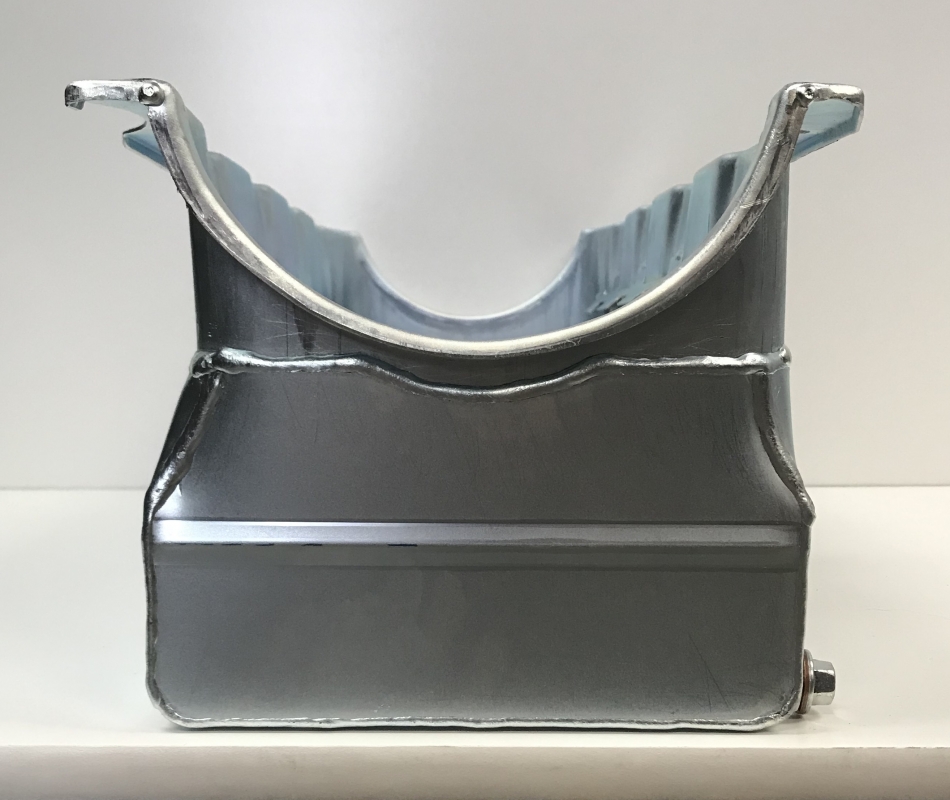

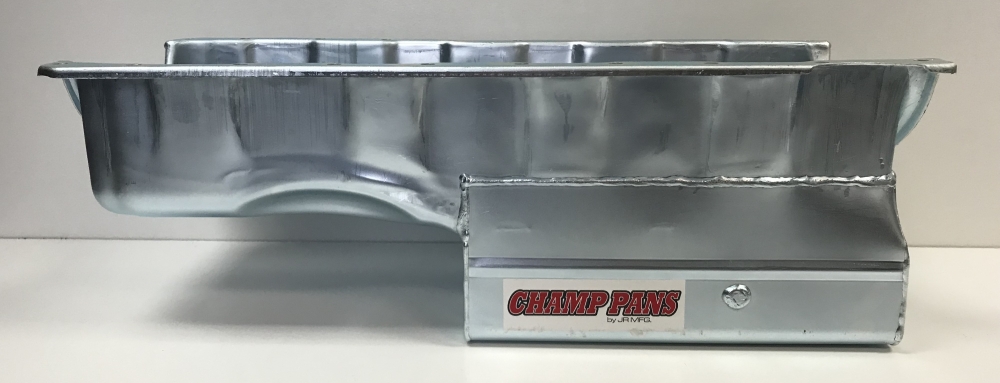

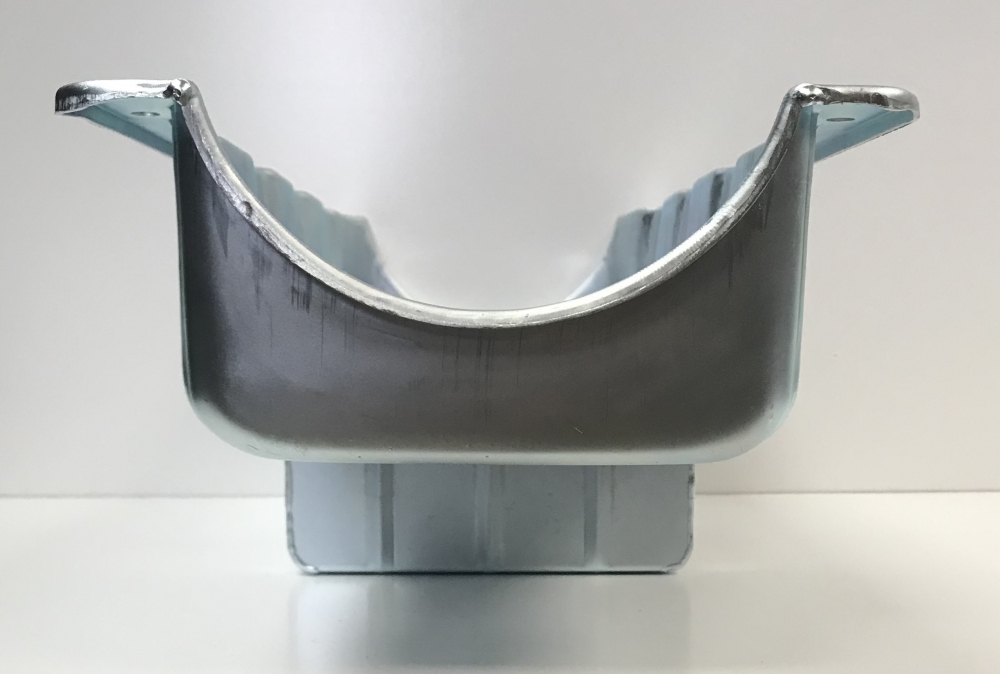

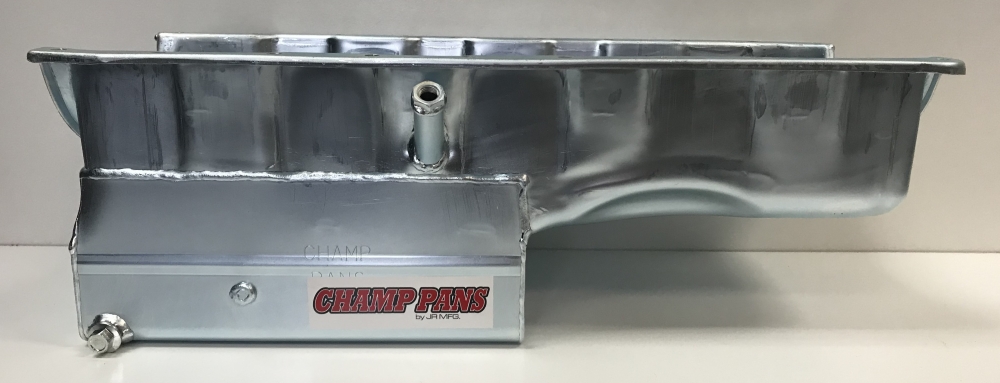

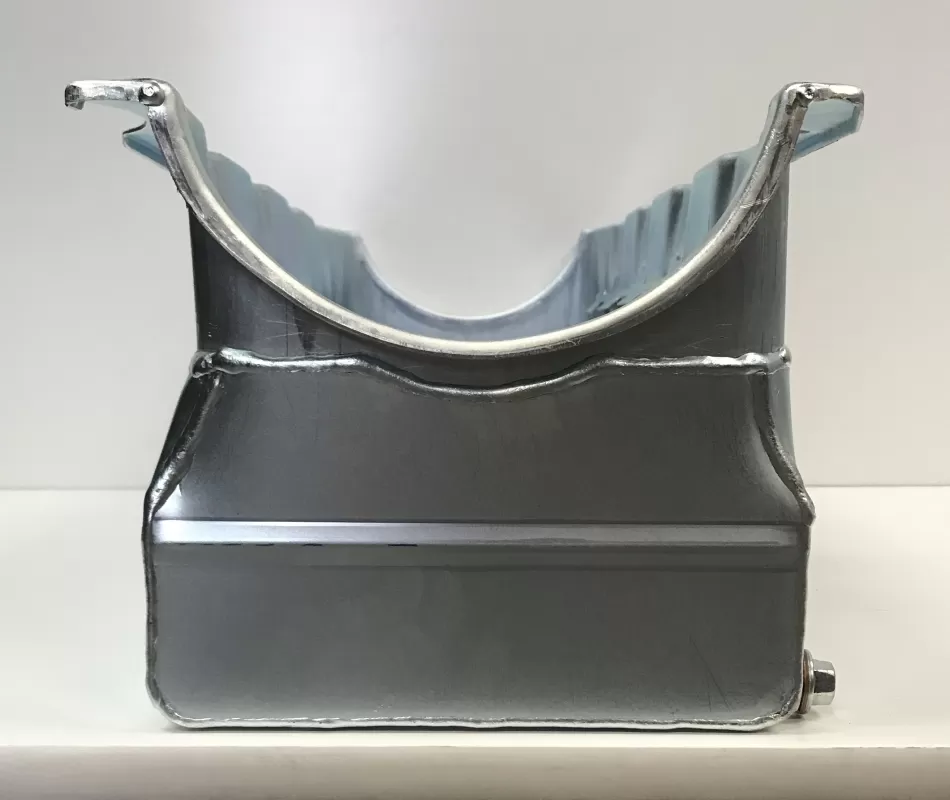

This steel wet sump oil pan is for the Big Block Chevrolet one piece rear main seal Gen V engines. This oil pan features:
- 14 gauge steel
- two 6” trapdoors
- one crank scraper
- two runners
- a dipstick provision

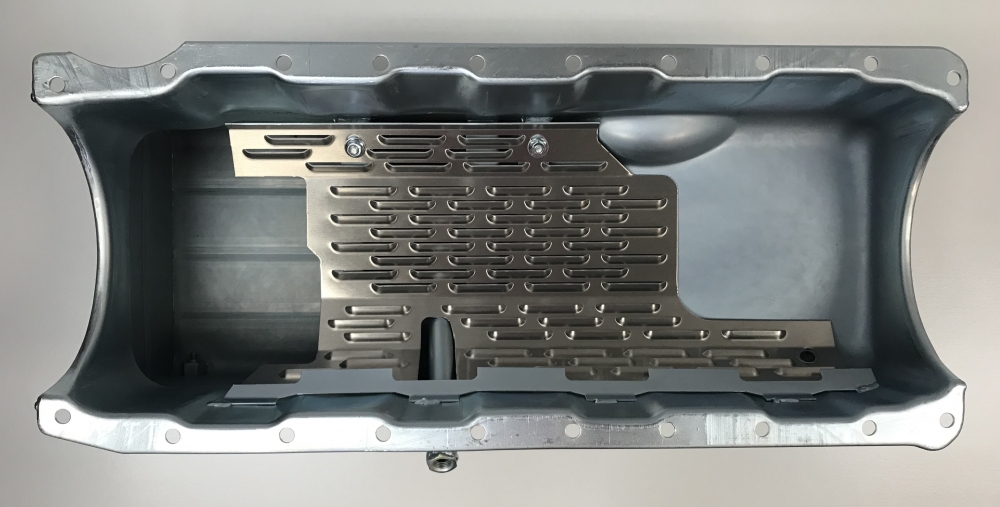

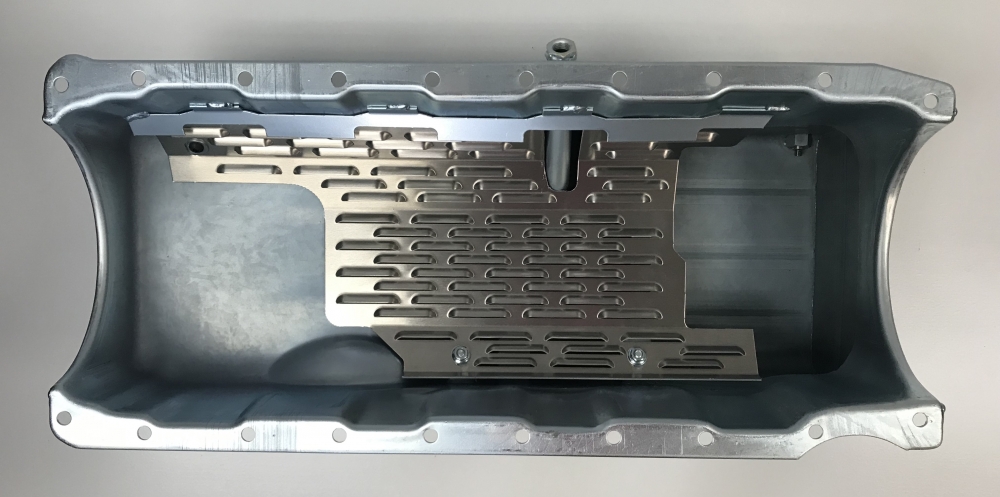

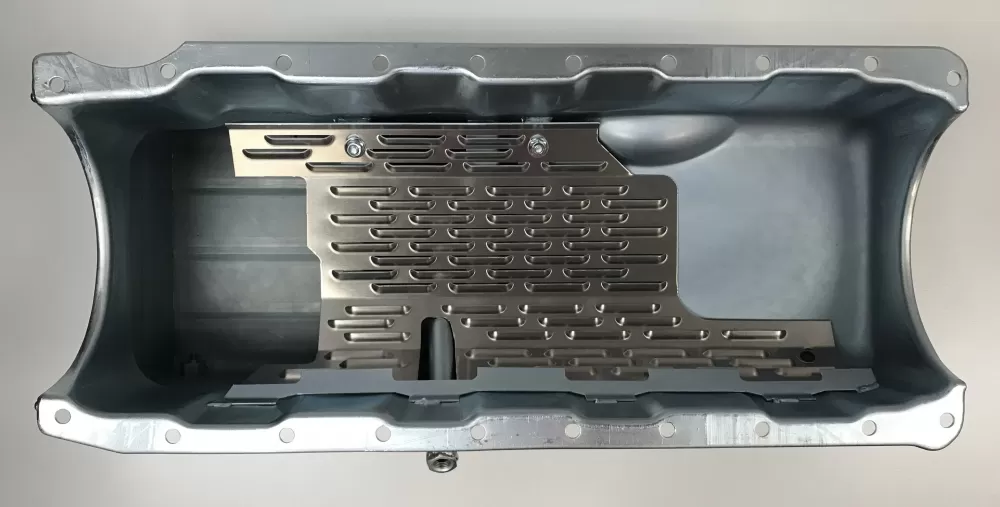

- a louvered windage tray
- a clear zinc finish
This oil pan will clear a 4 1/2" stroke.
Oil capacity: 8 quarts with filter
Use: Street or strip
Dipstick: Use JR130
Starter: Stock or mini-starter
Gasket: Use Cometic C15077 for non-stroker engine; use Cometic OP536-SP1 for stroker engine
Dimensions: 12” L x 8 1/4" W x 8" H
No additional information could be found for this product.
No installation instructions could be found for this product.
