PRO6206KO-9 > Small Block Ford 302

PRO6206KO-9 - $869.28

Style:
Small Block Ford 302
Dimensions:
6 1/2" deep

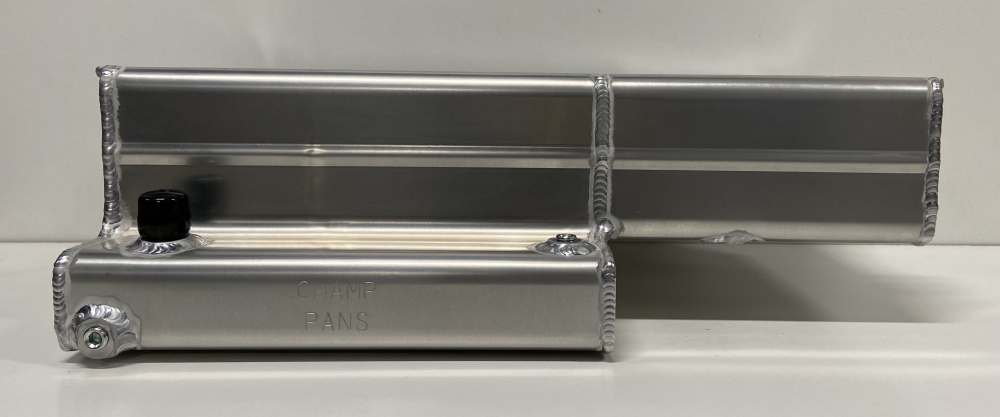

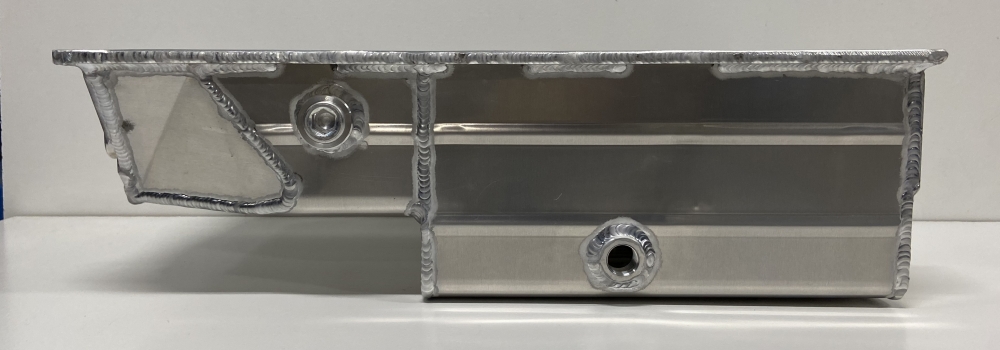

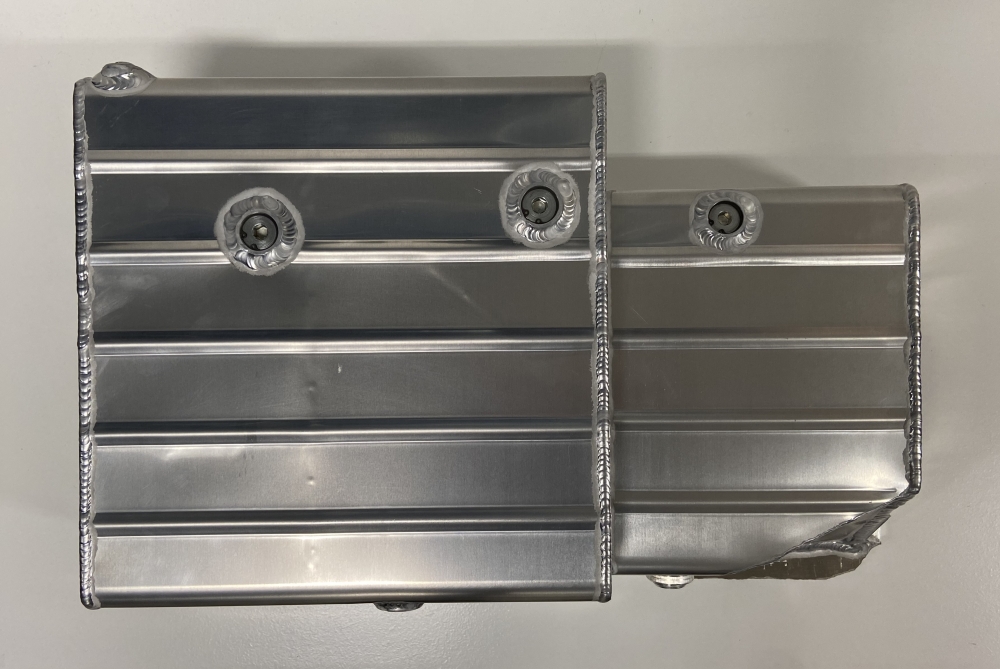

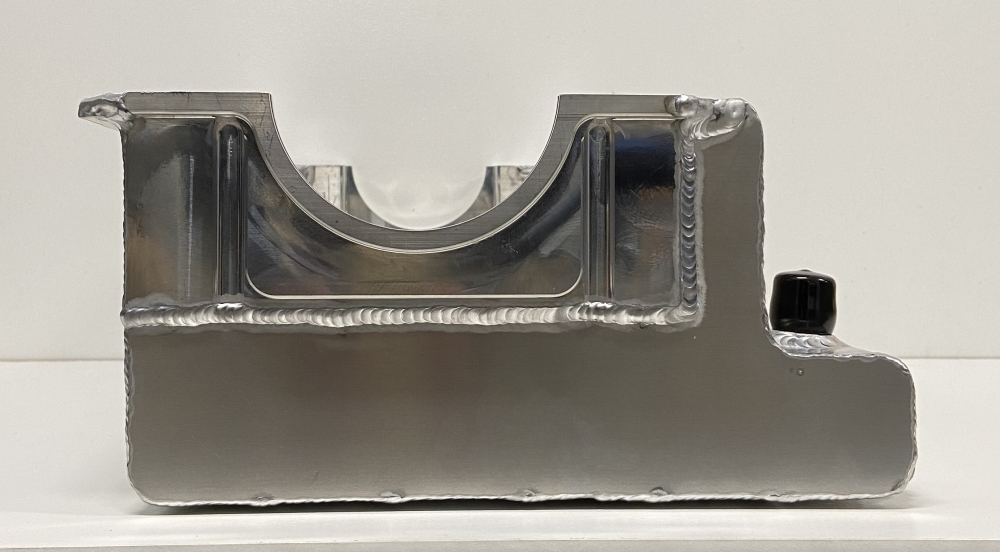

Description:This aluminum wet sump oil pan is for the Small Block Ford 302 engines. This oil pan features:
- a kick out that starts at the pan rail on the right side
- an external pickup welded inside
- a -12 an fitting exiting the top right side of the kick out
- the front sump removed
- billet aluminum front and rear end caps
- access plugs for the right side pan rail

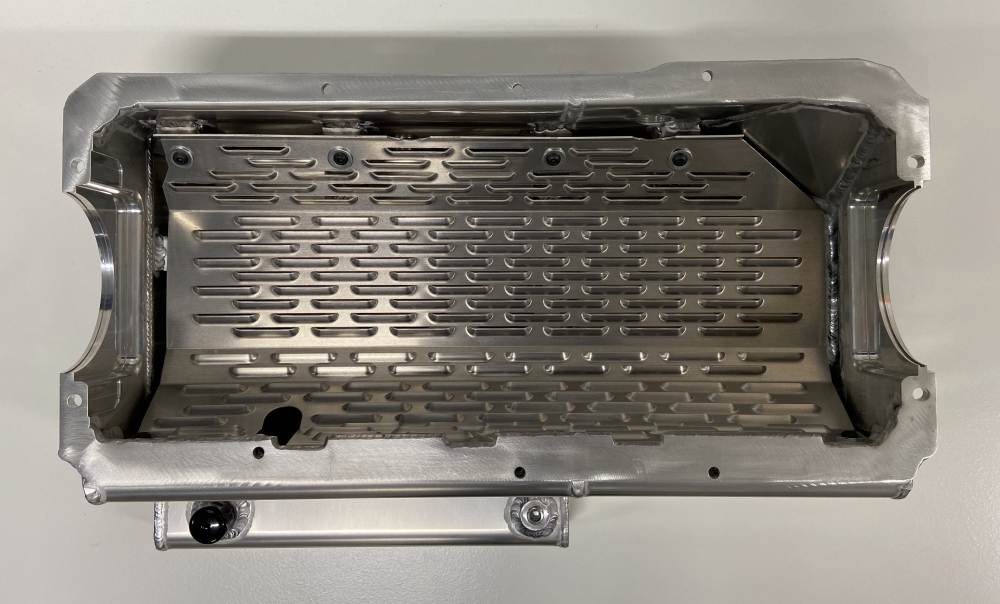

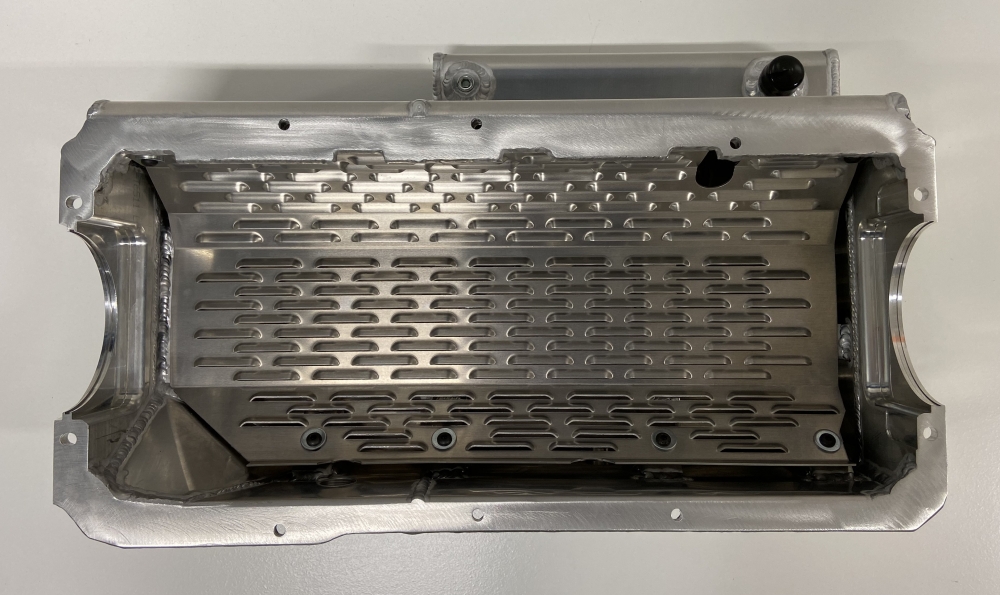

- a full length louvered windage tray
- five trapdoors
- an oil check level plug

No pan gasket required.

An external pump must be used.

Oil capacity: 7 quarts with filter

Use: Circle track

Starter: Reverse mounted

Dimensions: 13 1/4” L x 13" W x 6 1/2" H

Weight: 11 lbs
