PRO180F2 > Dart SBC with spread rails

PRO180F2 - $714.73

Style:
Dart SBC with spread rails
Dimensions:
5 1/2" deep

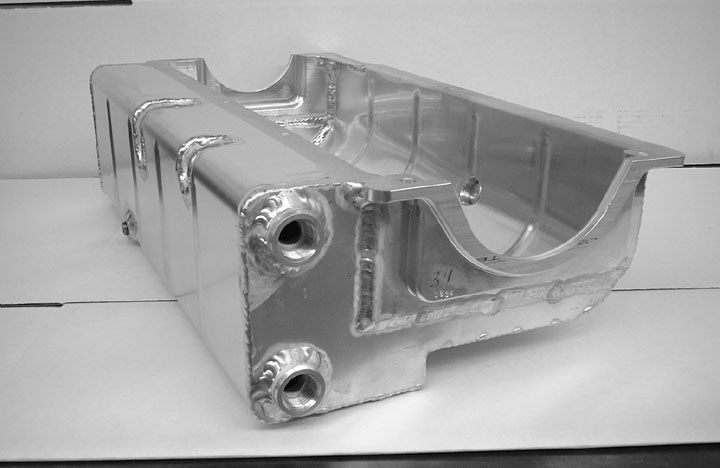

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts
- two -10 ports exiting forward
- an inspection hole
- a louvered windage tray
- a drain plug

No pan gasket required.

It will clear a mechanical fuel pump.

Use: Circle track

Starter: Reverse mounted

Dimensions: 5 1/2” deep on right side; 4 1/4” deep in front

Contact Us About This Product

Related Products

Name Application Info Price
CP15012 PRO170s, PRO180s Windage screen $34.93
