PRO172L3A > Small Block Chevrolet 1957-1985

PRO172L3A - $747.18

Style:
Small Block Chevrolet 1957-1985
Dimensions:
4 1/4" deep

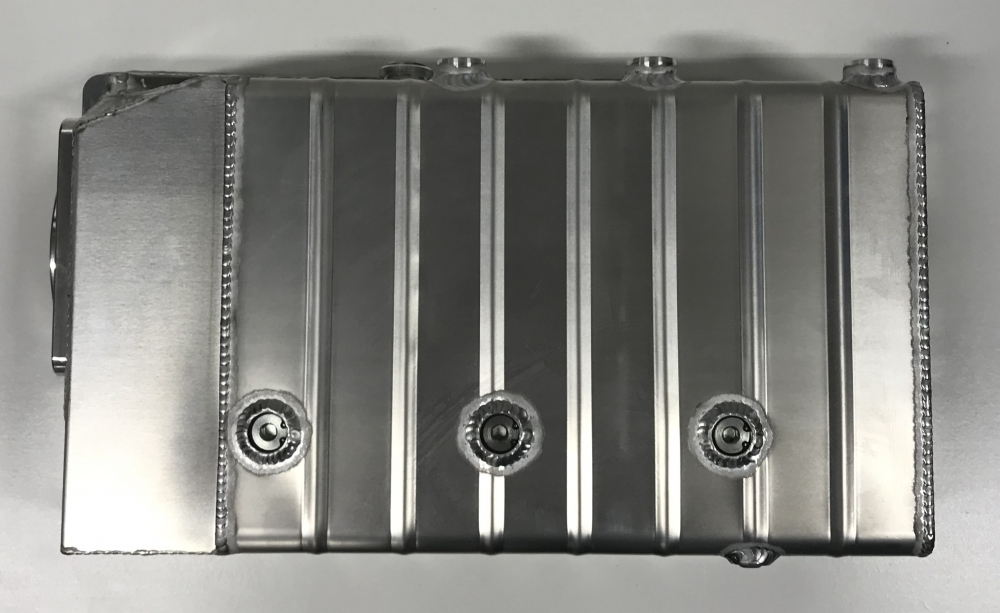

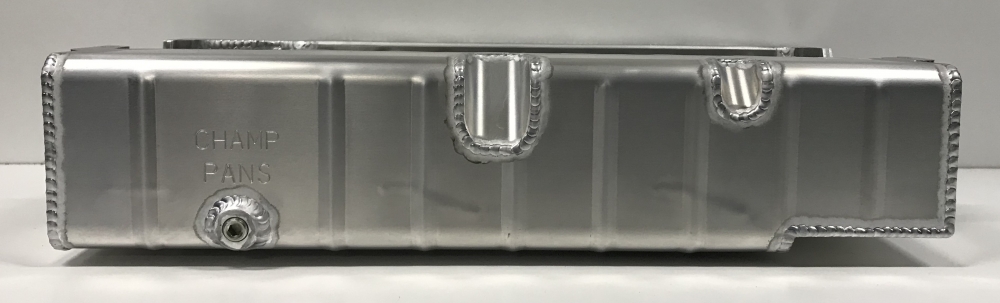

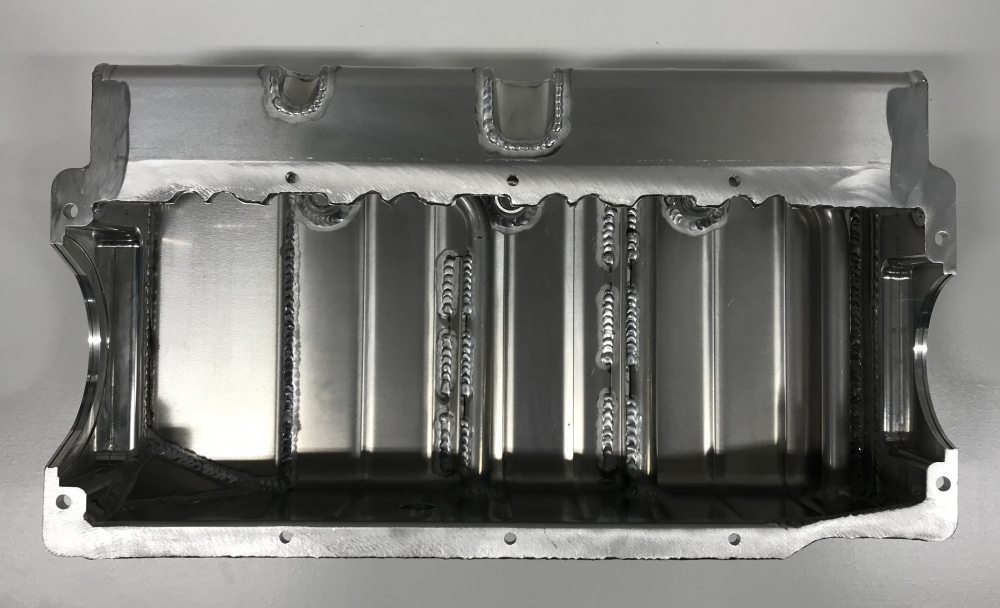

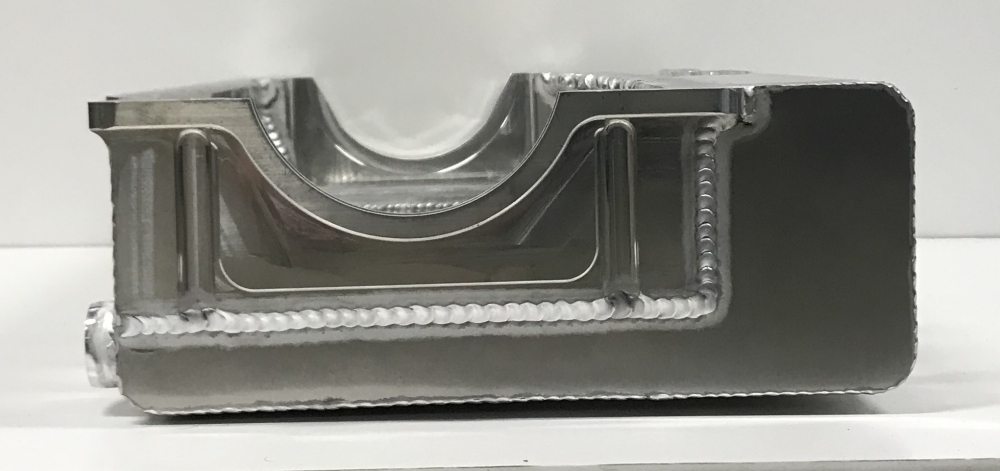

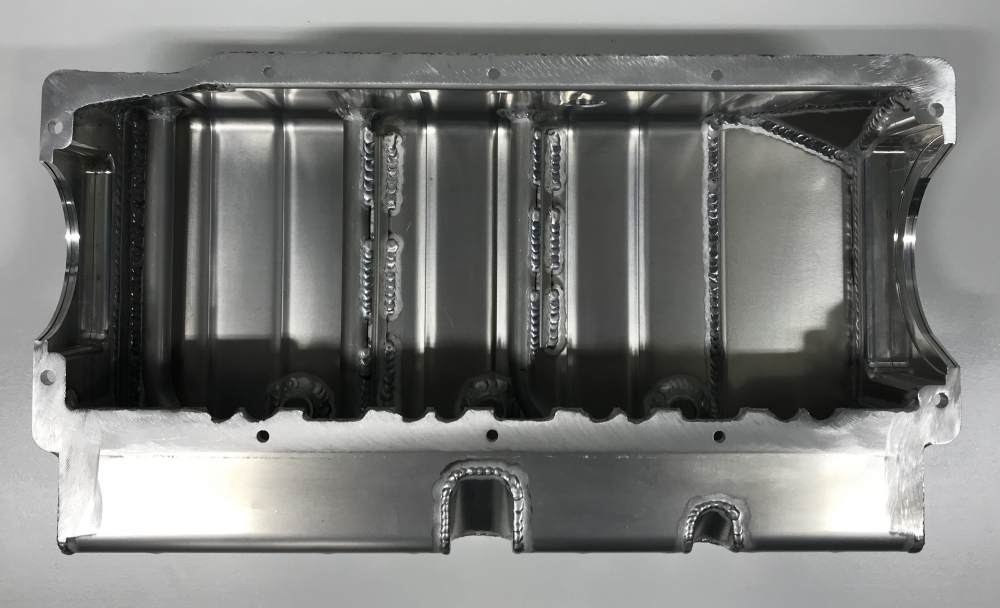

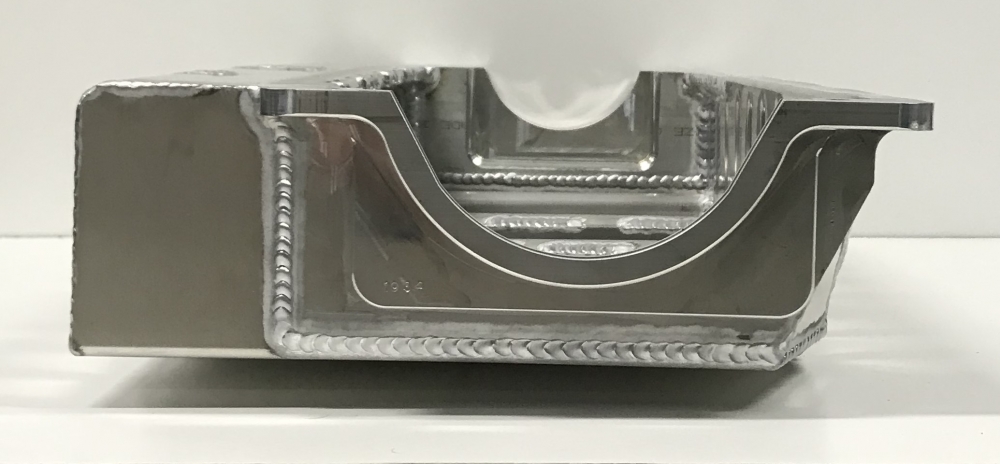

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting

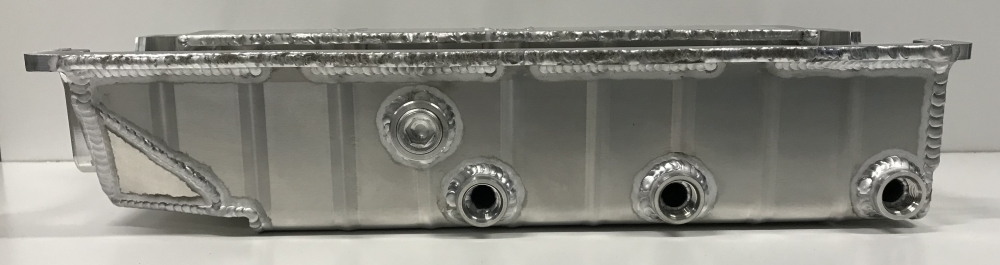

- three -10 o-ring ports that exit the bottom left side of the pan
- an inspection hole
- a drain plug

No pan gasket required.

It will clear a mechanical fuel pump.

Use: Asphalt circle track late models

Fits: Lefthander or Port City Chassis

Starter: Reverse mounted

Dimensions: 4 1/4" deep; front is 3 7/8" deep
