CP103KO > Small Block Chevrolet 1957-1985
CP103KO - $608.40
- Style:
- Small Block Chevrolet 1957-1985
- Dimensions:
- 6 1/2" deep

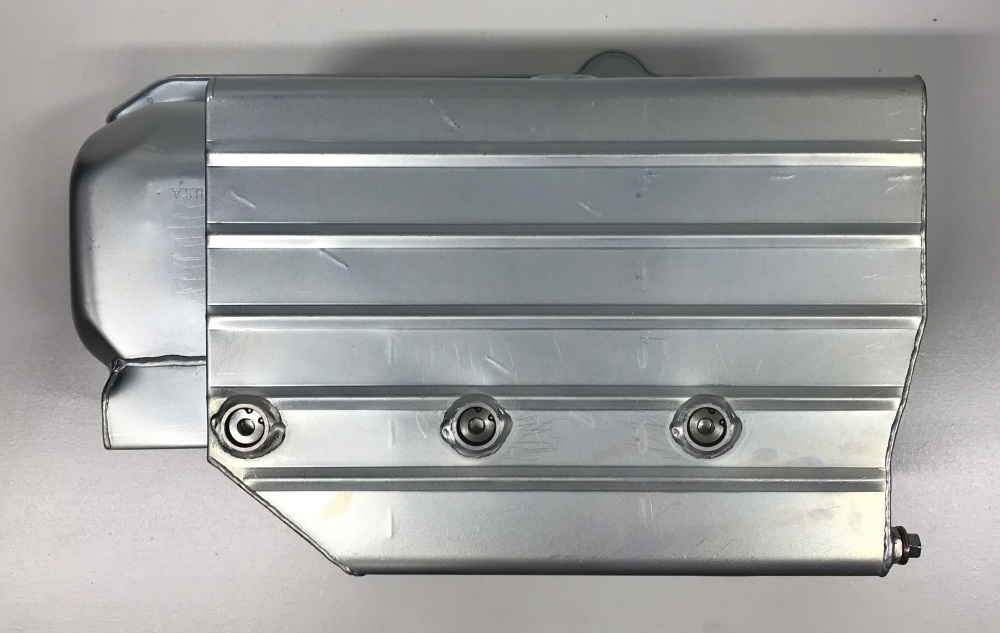

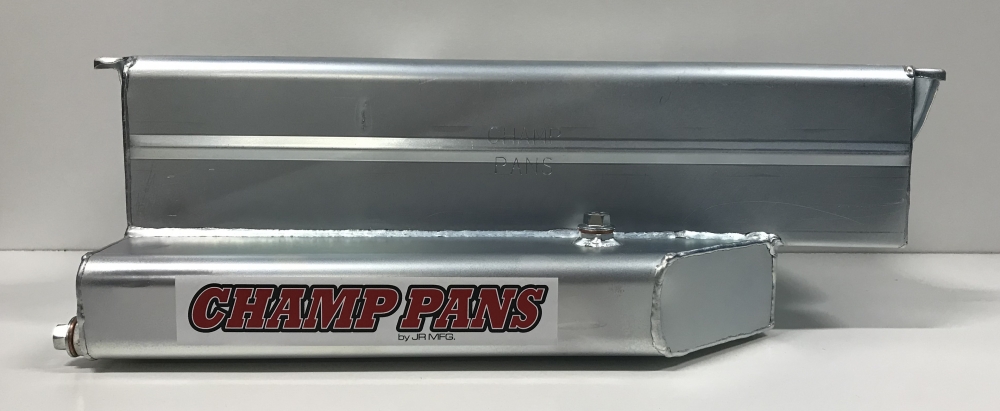

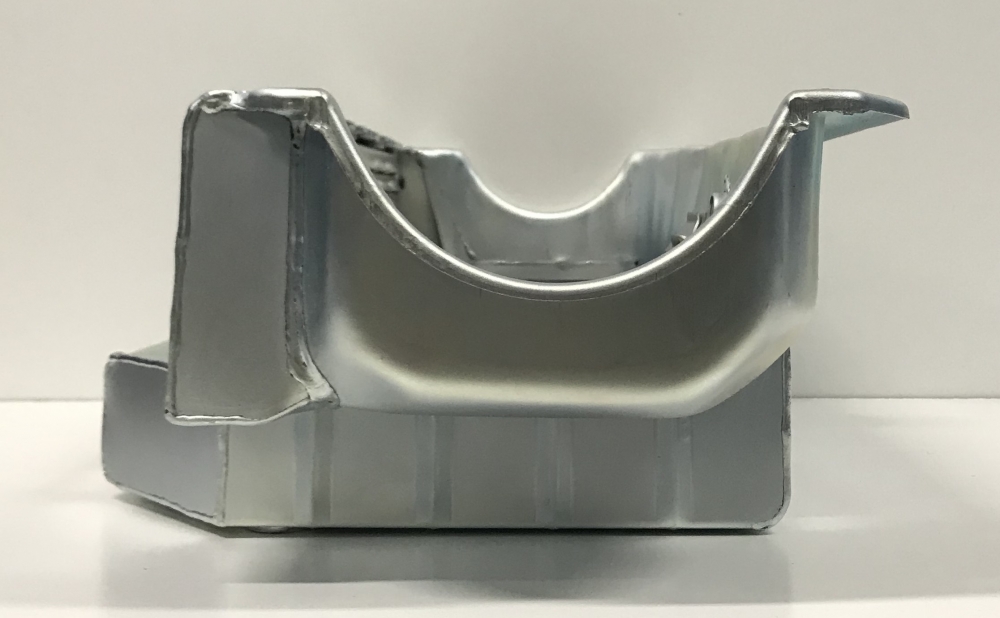

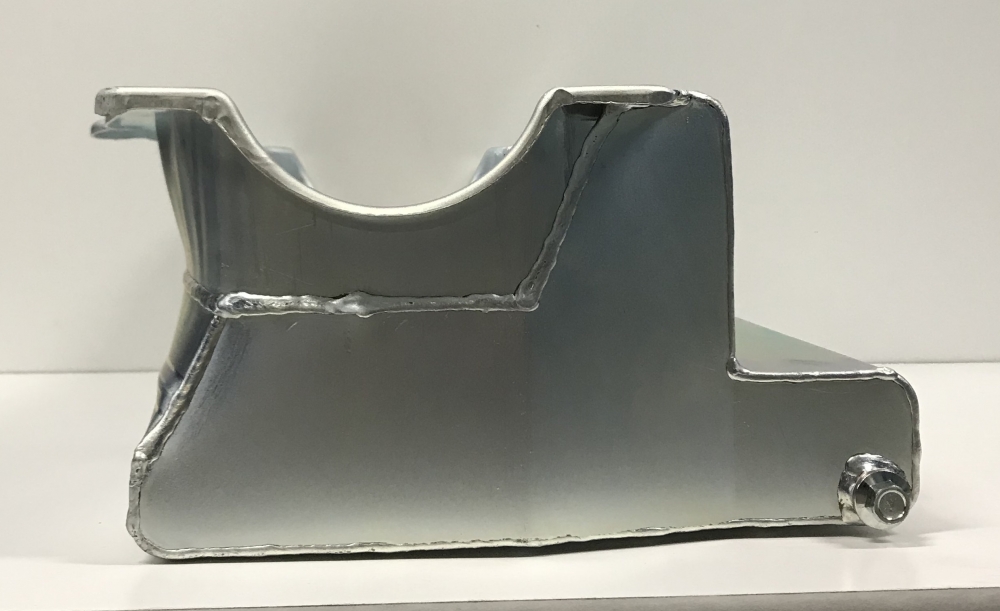

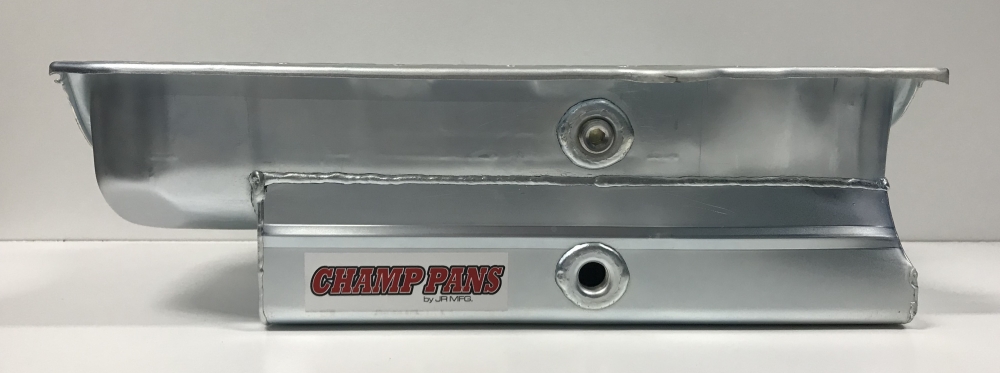

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block
- three access plugs on the right side for mounting
- six trapdoors
- two runners
- a sump tray
- an oil temp sender port
- a 3/4” sight hole

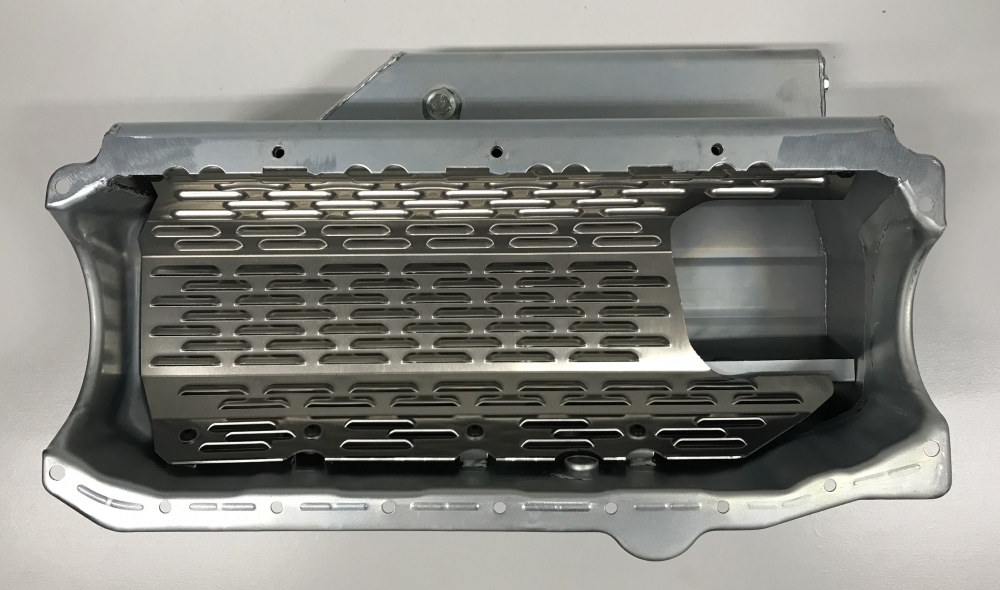

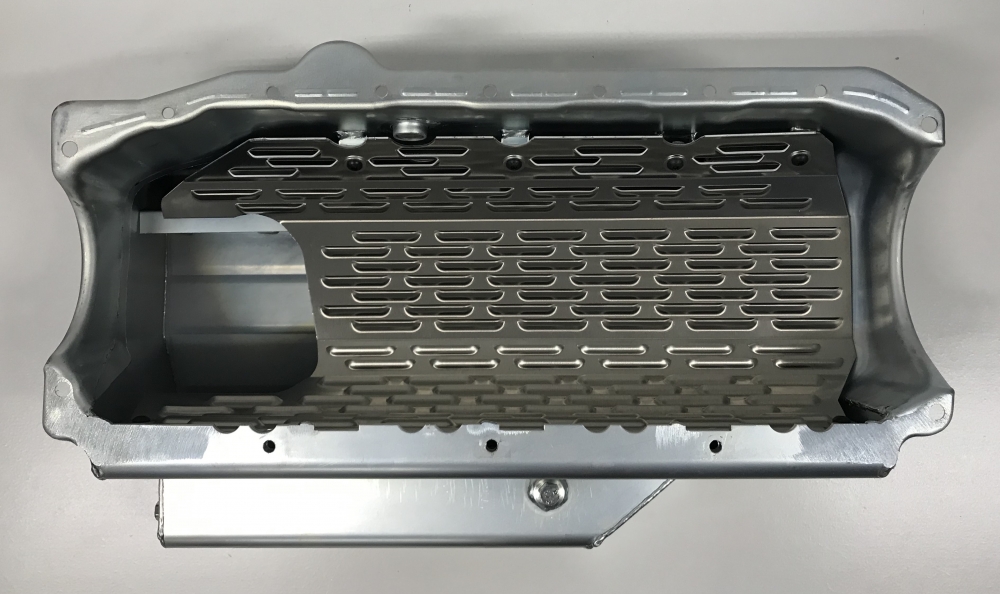

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish
This oil pan was designed for race cars that do not have a cross member in the way.
The 1703SB is for the M155 or M10554 pumps in this oil pan.
Oil capacity: 8 1/2 quarts with filter
Use: Circle Track
Series: Pro
Dipstick: Use JR131
Starter: Mini-starter for a 168 flywheel
Dimensions: 16 1/2” L x 11 1/4" W x 6 1/2" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 506SB | 10550C | 3/4” x 6 1/2” deep pickup and pump combination | $276.93 |
| 1106SB | M-55HV, 10550, 10550C and 10550ST | 5/8" x 6 1/2" deep pickup | $52.80 |
| 1703SB | 10552, 10552C, 10552ST, 10555, 10555C and 10555ST | 3/4" x 7" deep pickup | $53.63 |
| LT-10 | CP81KO, CP101KO, CP102KO, CP103KO, CP109KO | Louvered windage tray | $51.70 |
| JR131 | Small Block Chevrolet, Chrysler or Ford | Dipstick assembly | $28.65 |
| 1107SB | M-55, 10553 and 10553ST | 5/8" x 6 1/2" deep pickup | $52.80 |
| 506ST-SB | 10550ST | 3/4” x 6 1/2” deep pickup and pump combination | $318.45 |
