PRO7100KO > Small Block Ford 351W and SVO

PRO7100KO - $823.90

Style:
Small Block Ford 351W and SVO
Dimensions:
7" deep

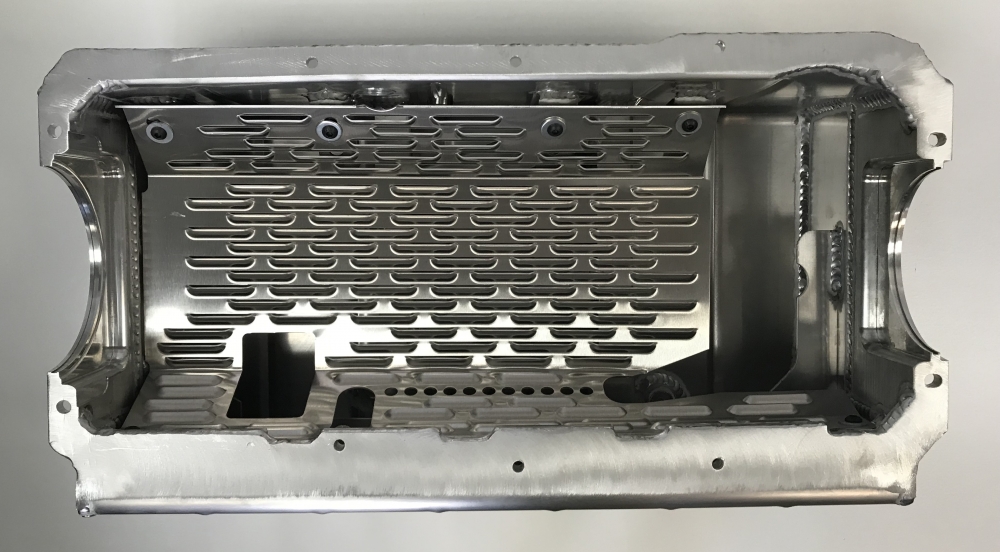

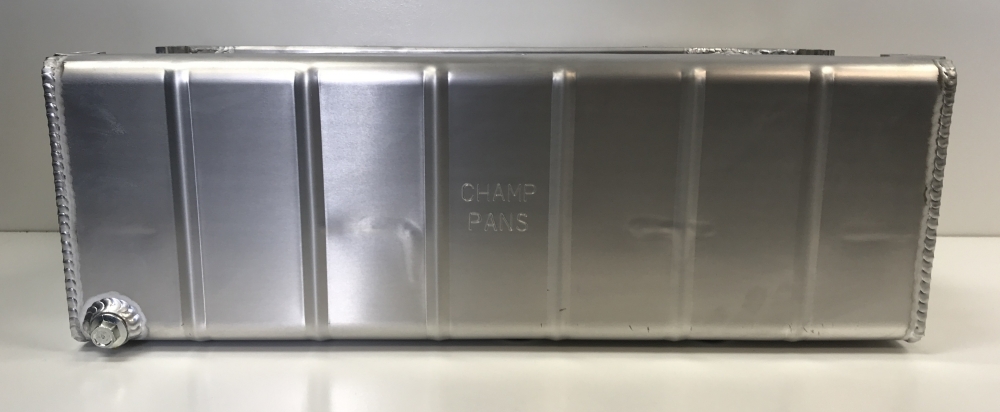

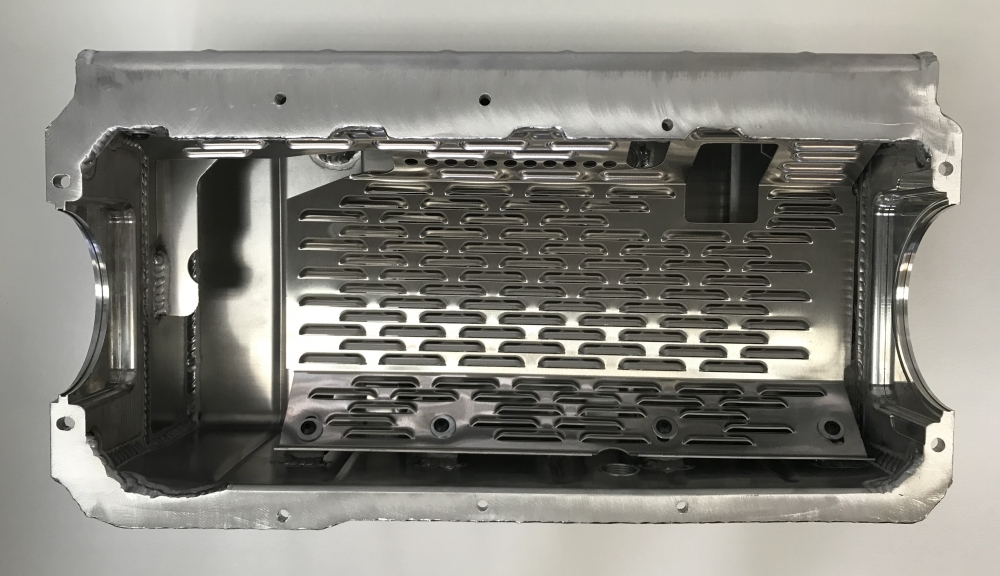

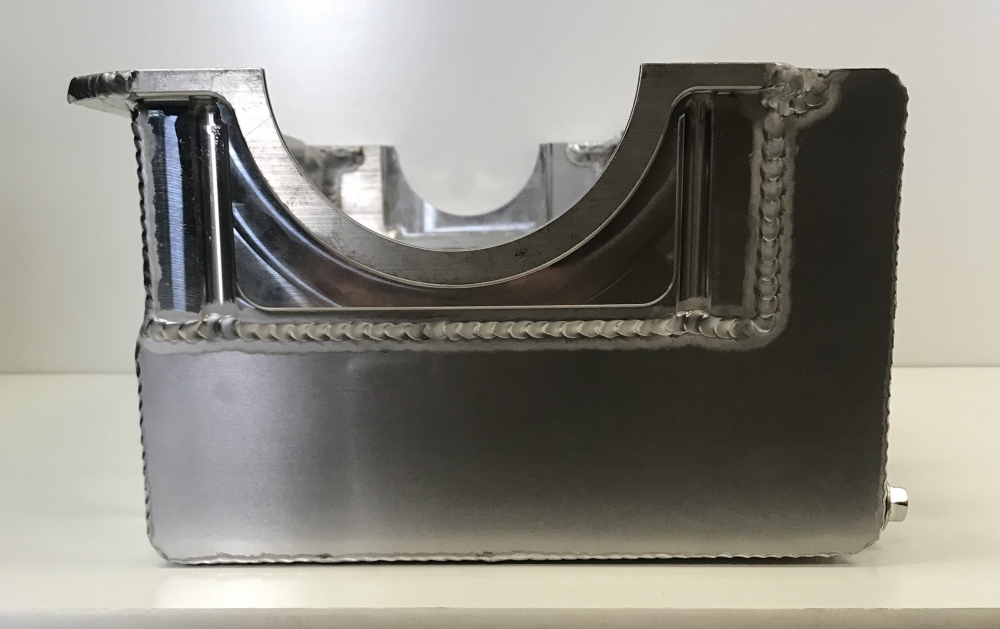

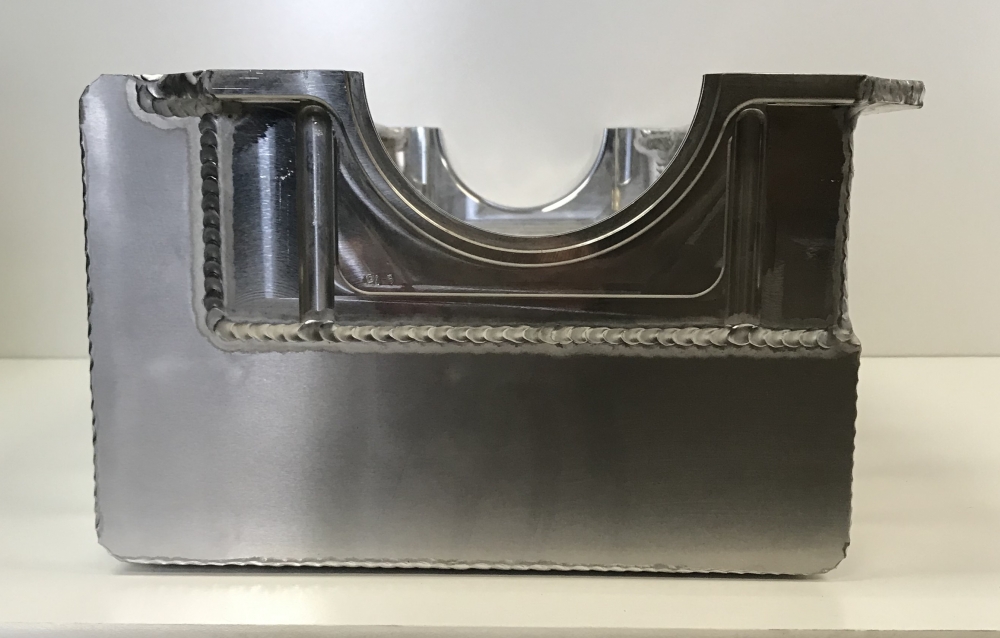

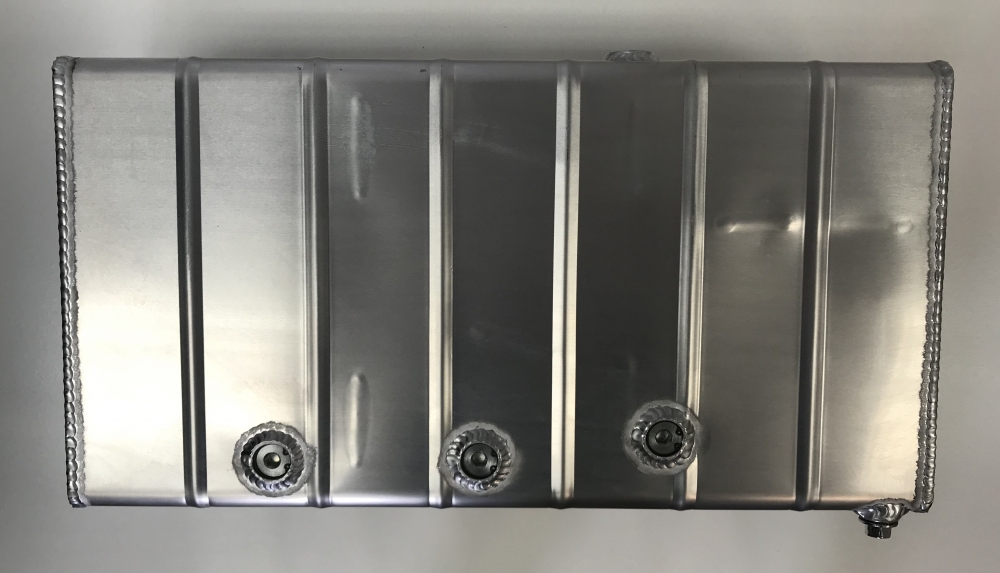

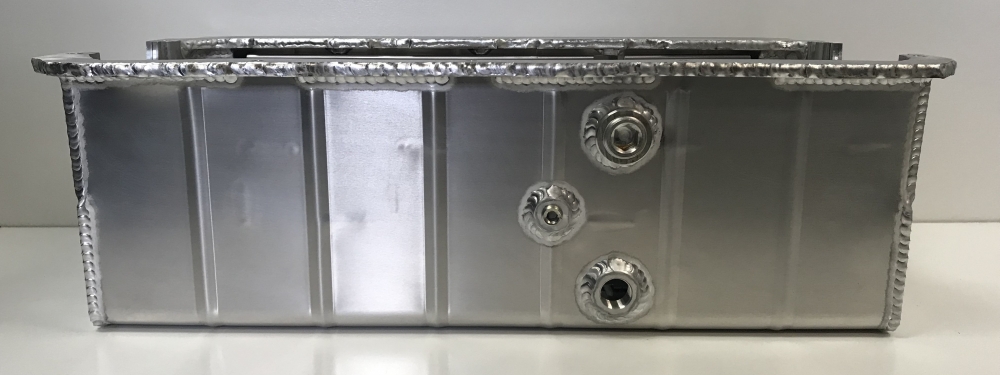

Description:This aluminum wet sump oil pan is for the Small Block Ford 351 Windsor and SVO engines. This oil pan features:
- a kick out that starts at the pan rail on the right side
- access plugs for the right side pan rail
- billet aluminum front and rear end caps
- a louvered windage tray
- five trapdoors
- an oil check level plug

No pan gasket required.

Oil capacity: 10 quarts with filter

Use: Circle track

Starter: Reverse mounted starter

Dimensions: 13 1/4” L x 13" W x 7" H

Weight: 10 lbs

Contact Us About This Product

Related Products

Name Application Info Price
351SB M-83HV 3/4" x 7" deep pickup $64.90
LT-8 PRO6100KO and PRO7100KO Louvered windage tray for aluminum oil pans with Option-9 $68.48
OPTION-9 Any aluminum oil pan External pickup installed $78.10
LT-15 PRO6100KO and PRO7100KO Louvered windage tray $68.48
