PRO3003 > Dart SBC with spread rails

PRO3003 - $766.70

Style:
Dart SBC with spread rails
Dimensions:
5 3/4" deep

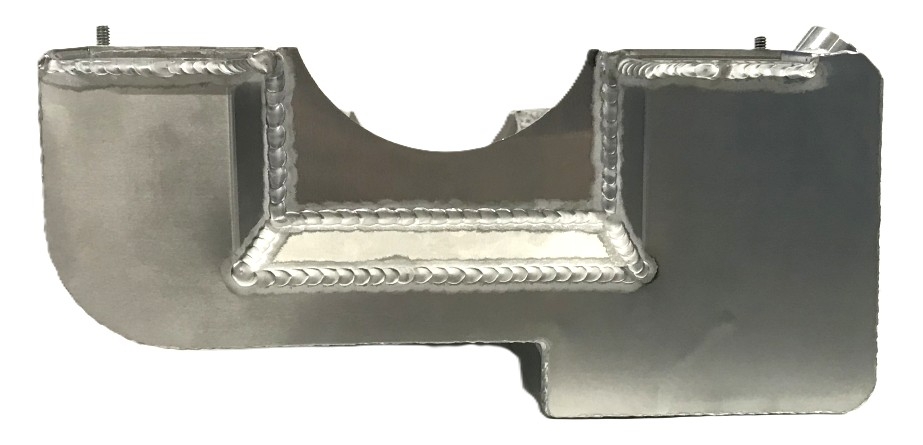

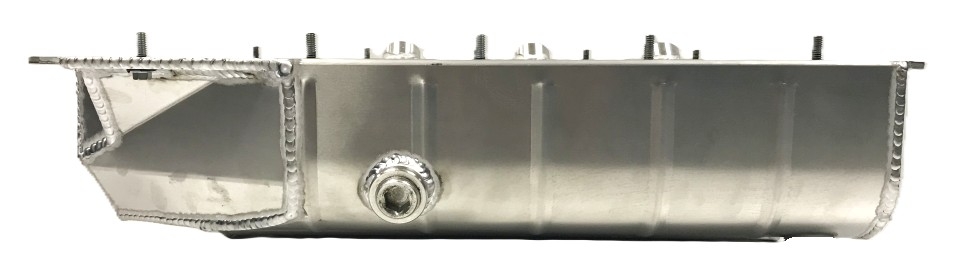

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:
- a double kick out that is 45% larger by volume than our PRO180 pan
- an extra kick out on the left side that frees up 15-20 horsepower

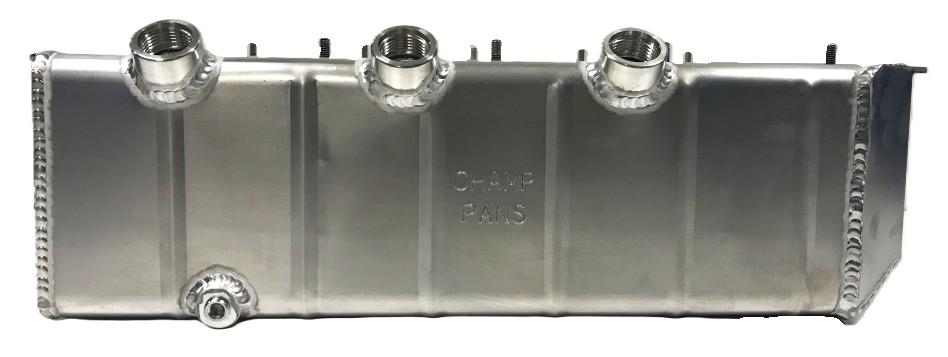

- three -12 female port fittings that exit the top right side of the kick out

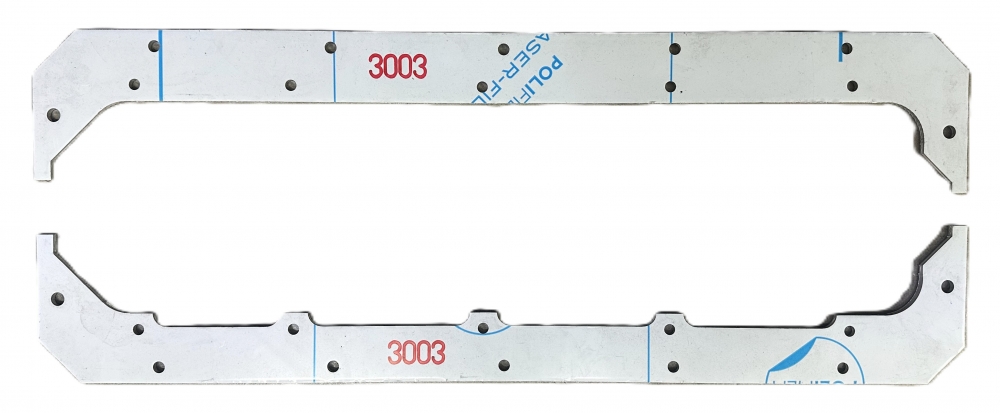

- mounting plates

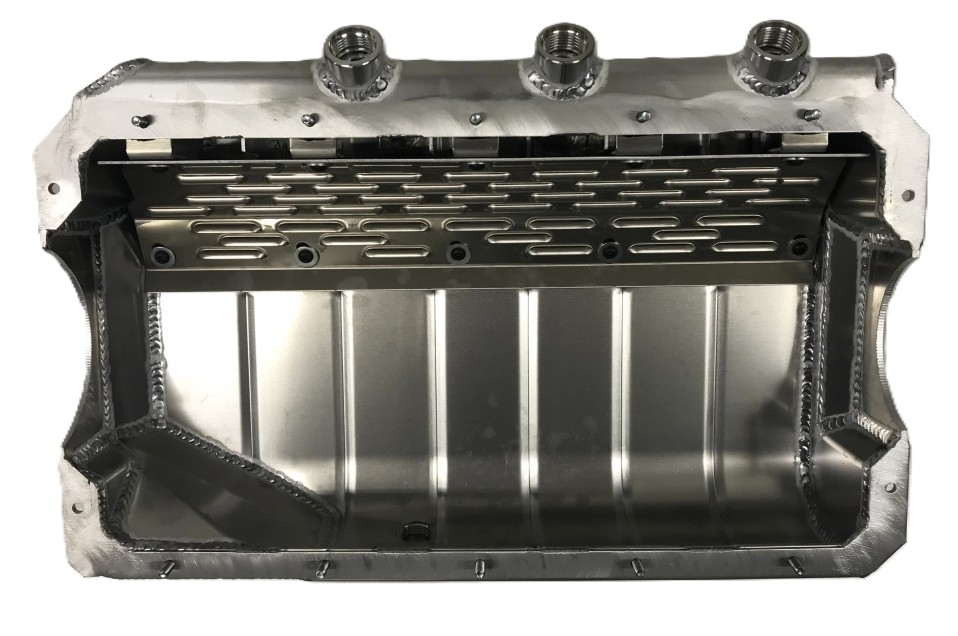

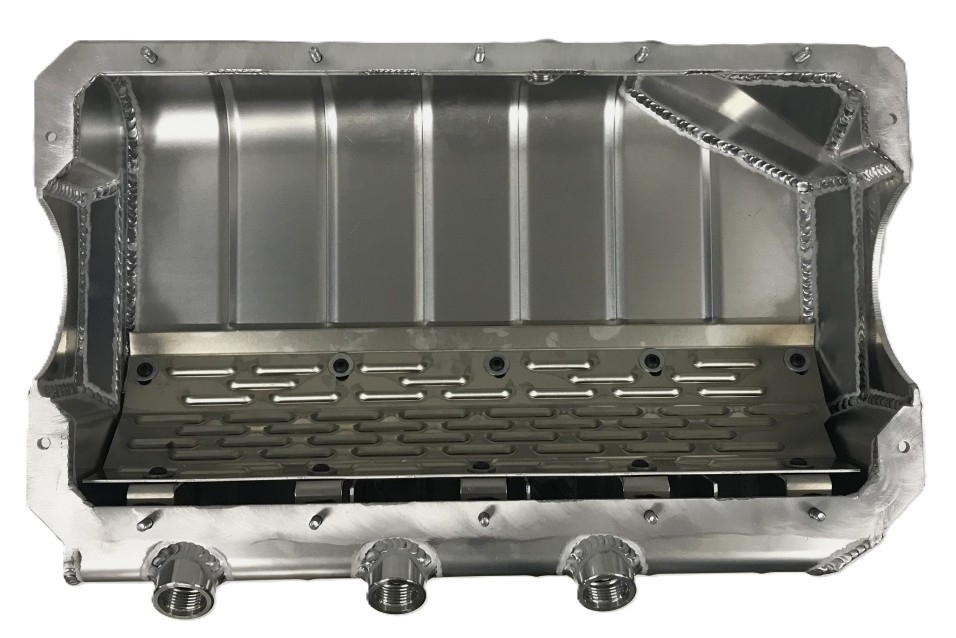

- a louvered windage tray

You will need to relocate the four main mounting holes.

Use: Circle track

Dimensions: 5 3/4" deep

Installation Instructions: Follow steps 2, 3, and 9 on attached installation file.
