PRO180R3A > Dart SBC with spread rails

PRO180R3A - $747.18

Style:
Dart SBC with spread rails
Dimensions:
5 1/2" deep

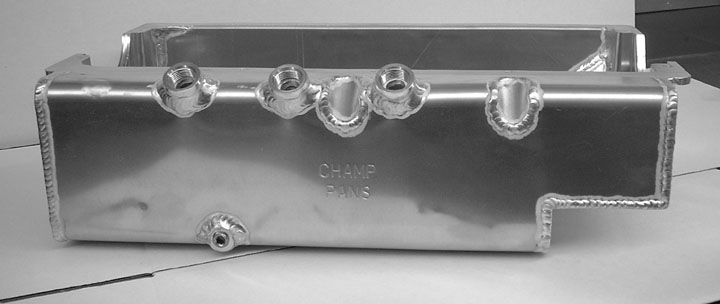

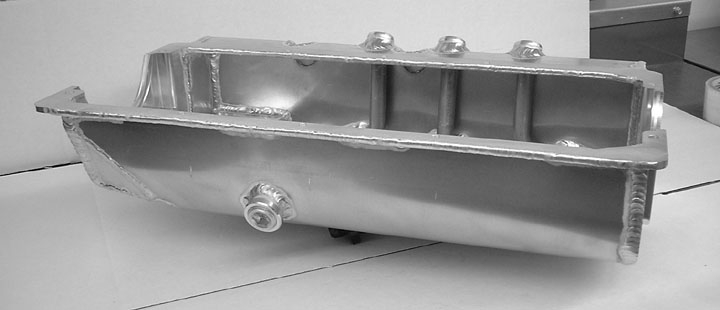

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts
- three -10 o-ring ports that exit the top right side of the pan
- an inspection hole
- a drain plug

It will clear a mechanical fuel pump.

Use: Asphalt circle track late models

Fits: Lefthander or Port City Chassis

Series: Pro

Starter: Reverse mounted

Dimensions: 5 1/2” deep on right side; 3 7/8” deep in front

Contact Us About This Product
